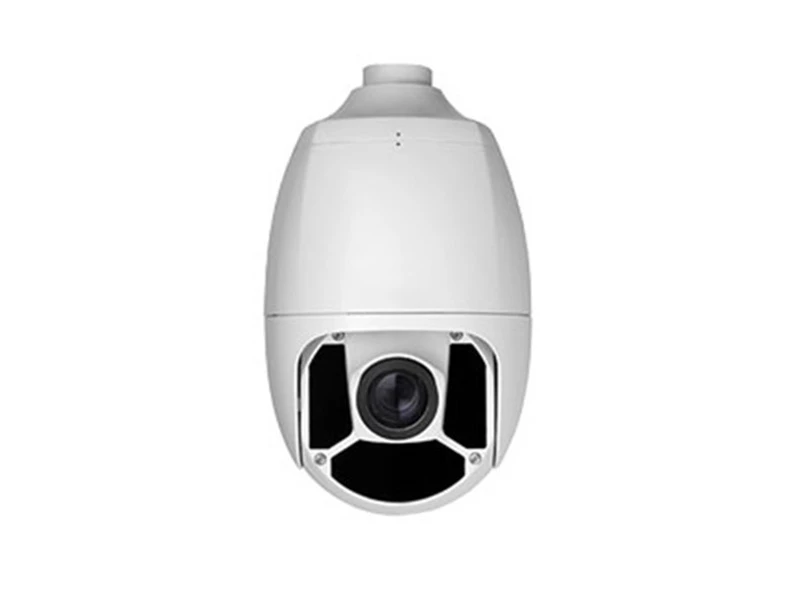

Neutron IPC6222ER-X30 IP Speed Dome Kamera
Özellikler
Teknik Özellikler
| Camera | |
| Sensor | 1/3", 2 megapixel, progressive scan, CMOS |
| Lens | 4.5 ~ 135 mm (30x optical zoom), AF automatic focusing and motorized zoom lens |
| Angle of View (H) | 62.9° (wide) ~ 2.3° (tele) |
| Iris | Auto/Manual; F1.6 ~ F4.4 |
| Shutter | Auto/Manual; shutter time: 1/6 s ~ 1/100000 s |
| Minimum Illumination | Colour: 0.03 lux (F1.6, AGC ON) |
| 0 lux with IR | |
| S/N | >52dB |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Defog | Digital Defog |
| WDR | Digital WDR |
| Video | |
| Max. Resolution | 1920 × 1080 |
| Video Compression | Ultra 265,H.265, H.264, MJPEG |
| Frame Rate | Main Stream:2MP (1920×1080):Max. 30 fps; |
| Sub Stream:2MP (1920×1080):Max. 30 fps; | |
| Third Stream: D1 (720×576): Max. 30 fps | |
| Video Streaming | Triple |
| HLC | Destekler |
| BLC | Destekler |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 8 areas |
| ROI | Up to 8 areas |
| EIS | Destekler |
| Motion Detection | Up to 4 areas |
| Smart | |
| Behavior Detection | Intrusion, cross line, motion detection |
| Exception Detection | Audio detection |
| Intelligent Identification | Face detection |
| Statistical Analysis | People counting |
| General Function | Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
| Audio | |
| Audio Compression | G.711 |
| Two-way audio | Supported |
| Suppression | Supported |
| Sampling Rate | 8 KHZ |
| Storage | |
| Edge Storage | Micro SD, up to 128 GB |
| Network Storage | ANR |
| Network | |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP |
| Compatible Integration | ONVIF(Profile S, Profile G), API |
| Pan & Tilt | |
| Pan Range | 360° (endless) |
| Pan Speed | 0.1°/s ~ 240°/s |
| Preset speed: 300°/s | |
| Tilt Range | –15° ~ +90° (auto reverse) |
| Tilt Speed | 0.1° ~ 160°/s |
| Preset speed: 240°/s | |
| Number of Preset | 1024 |
| Patrol | Up to 16 patrols, up to 32 presets per patrol |
| Note: The total number of patrols and patterns is 16. | |
| Pattern | Up to 16 patterns, with the total recording time not less 15 minutes per pattern |
| Interface | |
| Audio I/O | Audio cable |
| 1 Input: impedance 35 kΩ; amplitude 2 V [p-p] | |
| 1 Output: impedance 600 Ω; amplitude 2 V [p-p] | |
| Alarm I/O | 1.Oca |
| Network | 1 RJ45 10M/100M Base-TX Ethernet |
| General | |
| Power | 24 V AC±25%, 24 V DC±25% |
| Power consumption: 9 ~ 42W | |
| Dimensions (Ø x H) | Ø227 x 359.4 mm (Ø8.9" x 14.2") |
| Weight | 5.28 kg (11.6 lb) |
| Working Environment | –40°C ~ +65°C (-40°F ~ 149°F), Humidity ≤ 90% RH(non-condensing) |
| Ingress Protection | IP66 |
Neutron IPC6222ER X30 IP Speed Dome Kamera Pdf Dosyası1.24 MB
Teknik Kısa
Çözünürlük : 2MP (1080P)
Ses : Var
Depolama : Var
