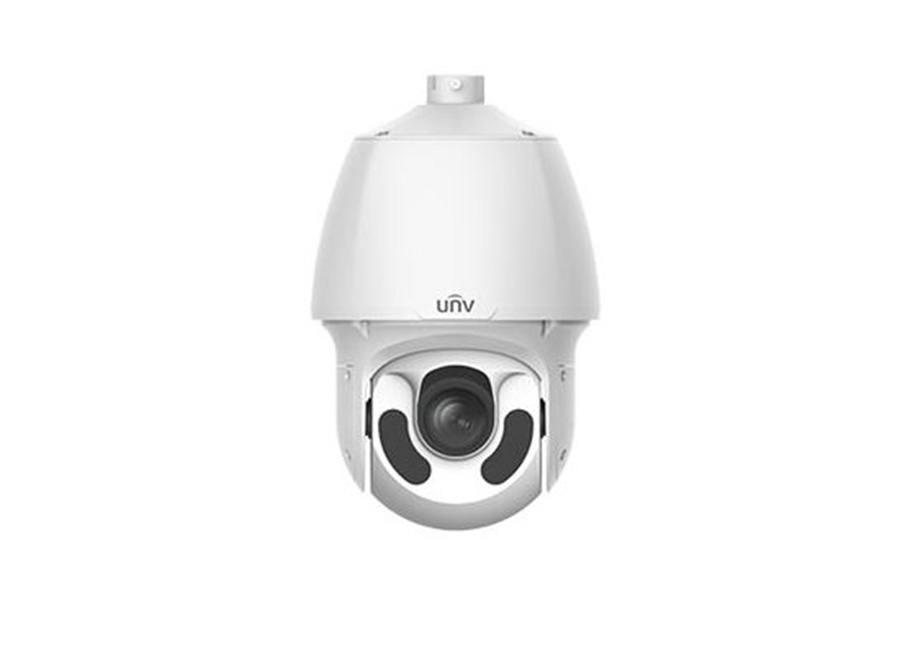

Uniview IPC6222ER X30 C IR IP PTZ Kamera

Özellikler

Optics

30X Optical Zoom
Accurate and fast focusing
Smart IR, up to 200 m (656ft) IR distance
Optical glass window with higher light transmittance
IR anti-reflection window to increase the infrared transmittance
120dB true WDR

Compression

Ultra 265, H.265, H.264, MJPEG
Embedded smart algorithm
Triple streams
Customized OSD

Network

ONVIF Conformance

Structure

Innovative snow-removing functionality
More effective heat dissipation system
Intelligent temperature control technology
6KV surge protection designed for network interface

Teknik Özellikler

IPC6222ER-X30-C				IPC6222ER-X30P-C
Camera
Sensor	1/2.8", progressive scan,2.0megapixel, CMOS
Lens	4.5 ~ 135 mm , AF automatic focusing and motorized zoom lens
Digital Zoom	16
Optical Zoom	30
DORI Distance	Lens	Detect(m)	Observe(m)	Recognize(m)	Identify(m)
	4.5mm	69.8	27.9	14	7
	135mm	2094.8	837.9	419	209.5
Angle of View (H)	71.7°~ 2.4°
Angle of View (V)	43.4°~1.3°
Angle of View (O)	88.2°~2.8°
Shutter	Auto/Manual; shutter time: 1 ~ 1/100000 s
Minimum Illumination	Colour: 0.001 lux (F1.5, AGC ON)
	0 lux with IR
Iris	Auto/Manual; F1.5 ~ F4.0
Day/Night	IR-cut filter with auto switch (ICR)
Digital noise reduction	2D/3D DNR
S/N	>52dB
IR Range	Up to 200 m (656 ft)
Defog	Digital Defog
WDR	120dB
Video
Video Compression	Ultra 265,H.265, H.264, MJPEG
H.264 code profile	Baseline profile, Main Profile, High Profile
Frame Rate	Main Stream:2MP (1920×1080):Max. 30 fps;
	Sub Stream:2MP (1920×1080):Max. 30 fps;
	Third Stream: D1 (720×576): Max. 30 fps
HLC	Supported
BLC	Supported
EIS	Supported
OSD	Up to 8 OSDs
Privacy Mask	Up to 24 areas
ROI	Up to 8 areas
Motion Detection	Up to 4 areas
Smart
General Function	Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
Audio Compression	G.711
Two-way audio	Supported
Suppression	Supported
Sampling Rate	8 KHZ
Storage
Edge Storage	Micro SD, up to 256 GB
Network Storage	ANR
Network
Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP,QoS
Compatible Integration	ONVIF(Profile S, Profile G, Profile T), API
Pan & Tilt
Pan Range	360° (endless)
Pan Speed	0.1°/s ~ 240°/s
	Preset speed: 300°/s
Tilt Range	–15° ~ +90° (auto reverse)
Tilt Speed	0.1° ~ 160°/s
	Preset speed: 240°/s
Number of Presets	1024
Patrol	Up to 16 patrols, up to 32 presets per patrol
	Note: The total number of patrols and patterns is 16.
Home Position	Supported
Interface
Audio I/O	Audio cable
	Input: impedance 35 kΩ; amplitude 2 V [p-p]
	Output: impedance 600 Ω; amplitude 2 V [p-p]
Alarm I/O	1.1
Network	1RJ45 10M/100M Base-TX Ethernet
General
Power	AC 24V±25%, DC 24V±25%			AC 24V±25%, DC 24V±25%,PoE (PSE Required)
	Power consumption: 9 ~ 42W
Dimensions(ØxH)	Ø227x359.4 mm (Ø8.9” x 14.2”)
Weight	5.28 kg (11.6lb)
Working Environment	-40°C ~ 65°C (-40°F ~ 149°F), Humidity:10%~95% RH(non-condensing)
Ingress Protection	IP66
