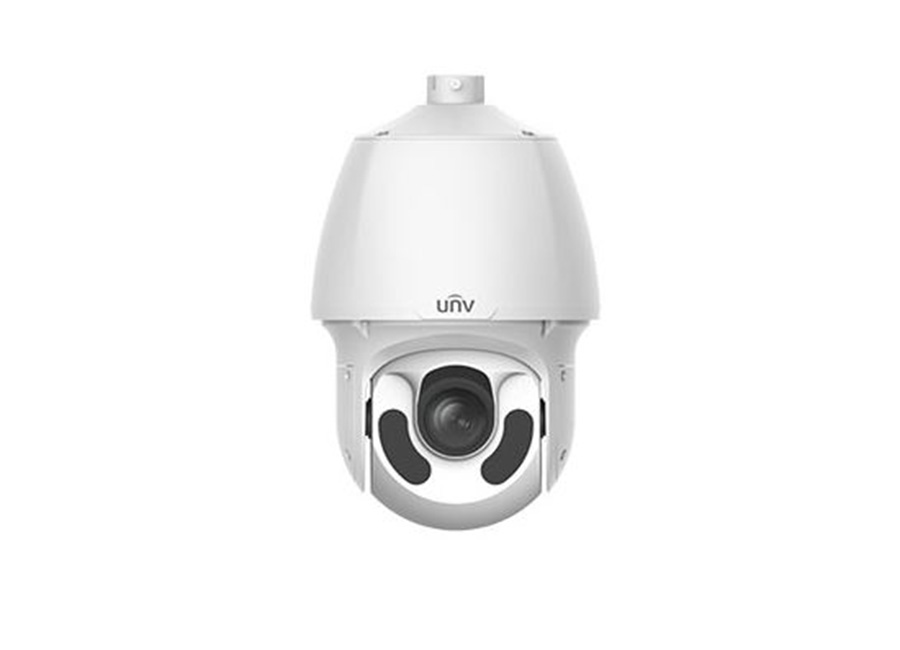

Uniview IPC6222ER X30P C IR IP PTZ Kamera
Özellikler
Optics
- 30X Optical Zoom
- Accurate and fast focusing
- Smart IR, up to 200 m (656ft) IR distance
- Optical glass window with higher light transmittance
- IR anti-reflection window to increase the infrared transmittance
- 120dB true WDR
Network
- ONVIF Conformance
- Innovative snow-removing functionality
- More effective heat dissipation system
- Intelligent temperature control technology
- 6KV surge protection designed for network interface
Teknik Özellikler
IPC6222ER-X30-C | IPC6222ER-X30P-C | |||||
Camera | ||||||
Sensor | 1/2.8", progressive scan,2.0megapixel, CMOS | |||||
Lens | 4.5 ~ 135 mm , AF automatic focusing and motorized zoom lens | |||||
Digital Zoom | 16 | |||||
Optical Zoom | 30 | |||||
DORI Distance | Lens | Detect(m) | Observe(m) | Recognize(m) | Identify(m) | |
4.5mm | 69.8 | 27.6 | 14 | 7 | ||
135mm | 2094.8 | 837.9 | 419 | 209.5 | ||
Angle of View (H) | 71.7°~ 2.4° | |||||
Angle of View (V) | 43.4°~1.3° | |||||
Angle of View (O) | 88.2°~2.8° | |||||
Shutter | Auto/Manual; shutter time: 1 ~ 1/100000 s | |||||
Minimum Illumination | Colour: 0.001 lux (F1.5, AGC ON) | |||||
0 lux with IR | ||||||
Iris | Auto/Manual; F1.5 ~ F4.0 | |||||
Day/Night | IR-cut filter with auto switch (ICR) | |||||
Digital noise reduction | 2D/3D DNR | |||||
S/N | >52dB | |||||
IR Range | Up to 200 m (656 ft) | |||||
Defog | Digital Defog | |||||
WDR | 120dB | |||||
Video | ||||||
Video Compression | Ultra 265,H.265, H.264, MJPEG | |||||
H.264 code profile | Baseline profile, Main Profile, High Profile | |||||
Frame Rate | Main Stream:2MP (1920×1080):Max. 30 fps; | |||||
Sub Stream:2MP (1920×1080):Max. 30 fps; | ||||||
Third Stream: D1 (720×576): Max. 30 fps | ||||||
HLC | Supported | |||||
BLC | Supported | |||||
EIS | Supported | |||||
OSD | Up to 8 OSDs | |||||
Privacy Mask | Up to 24 areas | |||||
ROI | Up to 8 areas | |||||
Motion Detection | Up to 4 areas | |||||
Smart | ||||||
General Function | Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication | |||||
Audio | ||||||
Audio Compression | G.711 | |||||
Two-way audio | Supported | |||||
Suppression | Supported | |||||
Sampling Rate | 8 KHZ | |||||
Storage | ||||||
Edge Storage | Micro SD, up to 256 GB | |||||
Network Storage | ANR | |||||
Network | ||||||
Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP,QoS | |||||
Compatible Integration | ONVIF(Profile S, Profile G, Profile T), API | |||||
Pan & Tilt | ||||||
Pan Range | 360° (endless) | |||||
Pan Speed | 0.1°/s ~ 240°/s | |||||
Preset speed: 300°/s | ||||||
Tilt Range | –15° ~ +90° (auto reverse) | |||||
Tilt Speed | 0.1° ~ 160°/s | |||||
Preset speed: 240°/s | ||||||
Number of Presets | 1024 | |||||
Patrol | Up to 16 patrols, up to 32 presets per patrol | |||||
Note: The total number of patrols and patterns is 16. | ||||||
Home Position | Supported | |||||
Interface | ||||||
Audio I/O | Audio cable | |||||
Input: impedance 35 kΩ; amplitude 2 V [p-p] | ||||||
Output: impedance 600 Ω; amplitude 2 V [p-p] | ||||||
Alarm I/O | 1.1 | |||||
Network | 1RJ45 10M/100M Base-TX Ethernet | |||||
General | ||||||
Power | AC 24V±25%, DC 24V±25% | AC 24V±25%, DC 24V±25%,PoE (PSE Required) | ||||
Power consumption: 9 ~ 42W | ||||||
Dimensions(ØxH) | Ø227x359.4 mm (Ø8.9” x 14.2”) | |||||
Weight | 5.28 kg (11.6lb) | |||||
Working Environment | -40°C ~ 65°C (-40°F ~ 149°F), Humidity:10%~95% RH(non-condensing) | |||||
Ingress Protection | IP66 |
Uniview IPC6222ER X30P C IR IP PTZ Kamera Pdf Dosyası924.55 KB
Teknik Kısa
Çözünürlük : 2MP (1080P)
Irled : Var
