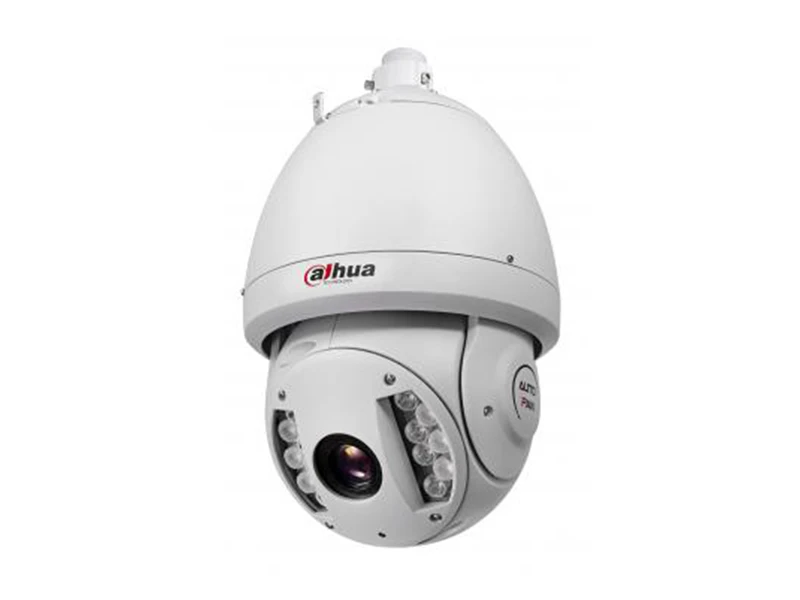

Dahua DH SD6983A HN IP HD Speed Dome Kamera
Özellikler
- 4.7mm ~ 94.0mm(20x)optical zoom
- H.264 & MJPEG dual-stream encoding and JPEG image capture
- Max 15fps@3Mp, 25/30fps @ 1080p resolution
- 100db WDR, Day/Night(ICR), DNR (2D&3D),Auto iris, Auto focus, AWB, AGC,BLC
- Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
- Max 240°/s pan speed, 360° endless pan rotation
- Up to 255 presets, 5 auto scan, 8 tour, 5 pattern
- Built-in 7/2 alarm in/out
- Support intelligent 3D positioning with DH-SD protocol
- Micro SD memory, IP66
- IR LEDs up to 100m
Teknik Özellikler
Kamera | ||
Görüntü Sensörü | 1/3” CMOS | |
Effective Pixels | 2048(H) x 1536(V), 3 Megapixels | |
Scanning System | Progressive | |
Electronic Shutter Hızı | 1/1 ~ 1/30,000s | |
Min.Aydınlatma | Color: 0.05Lux @ F1.6, B/W: 0.005Lux @ F1.6 | |
S/N Oranı | More than 50dB | |
Video Çıkış | BNC(1.0Vp-p/75Ω), PAL / NTSC | |
Kamera Özellikleri | ||
Max.IR Mesafesi | 100mt | |
Day/Night | Auto(ICR) / Color / B/W | |
Arka Işık Telafisi | BLC / HLC / WDR (100db, 1080P mode) | |
Beyaz Denge | Auto, ATW, Indoor, Outdoor, Manual | |
Kazanç Kontrolü | Auto / Manual | |
Gürültü Azaltma | 2D / 3D | |
Gizlilik Maskesi | Up to 24 areas | |
Digital Zoom | 16x | |
Lens | ||
Focal Length | 4.7mm ~ 94.0mm(20x Optical zoom) | |
Max Aperture | F1.6 ~ F3.5 | |
Focus Control | Auto / Manual | |
Angle of View | H: 58.2° ~ 2.9° | |
Close Focus Distance | 10mm ~ 1000mm | |
PTZ | ||
Pan/Tilt Range | Pan: 0° ~ 360° endless; Tilt: -2° ~ 90°, auto flip 180° | |
Manual Control Speed | Pan: 0.1° ~ 160°/s; Tilt: 0.1° ~120°/s | |
Preset Speed | Pan: 240°/s; Tilt: 200°/s | |
Preset | 80(DH-SD), 255(Pelco-P/D) | |
PTZ Mode | 5 Pattern, 8 Tour, Auto Pan, Auto Scan | |
Speed Setup | Human-oriented focal length/ speed adaptation | |
Power up Action | Auto restore to previous PTZ and lens status after power failure | |
Idle Motion | Activate Preset/Pan/Scan/Tour/Pattern if there is no command in the specified period | |
Time Task | Auto activation of Preset/Pan/Scan/Tour/Pattern by preset-time | |
Protocol | DH-SD, Pelco-P/D (Auto recognition) | |
Video | ||
Sıkıştırma | H.264 / MJPEG | |
Çözünürlük | 3MP(2048×1536) / 1080P(1920×1080) / 720P(1280×720) / D1(704×576/704×480) / CIF(352×288/352×240) | |
Frame Hızı | Main Stream | 3MP(1 ~ 15fps) / 1080P/720P(1 ~ 25/30fps) |
Sub Stream | D1/CIF(1 ~ 25/30fps) | |
Bit Hızı | H.264: 56K ~ 8192Kbps, MJPEG: 56K ~ 20480Kbps | |
Ses | ||
Sıkıştırma | G.711a / G.711u (32kbps) / PCM (128kbps) | |
Arayüz | 1/1 channel In/Out | |
Network | ||
Ethernet | RJ-45 (10/100Base-T) | |
Protocol | IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour |
Dahua DH SD6983A HN IP HD Speed Dome Kamera Pdf Dosyası243.87 KB
Teknik Kısa
Çözünürlük : 3MP
Irled : Var
Depolama : Var
