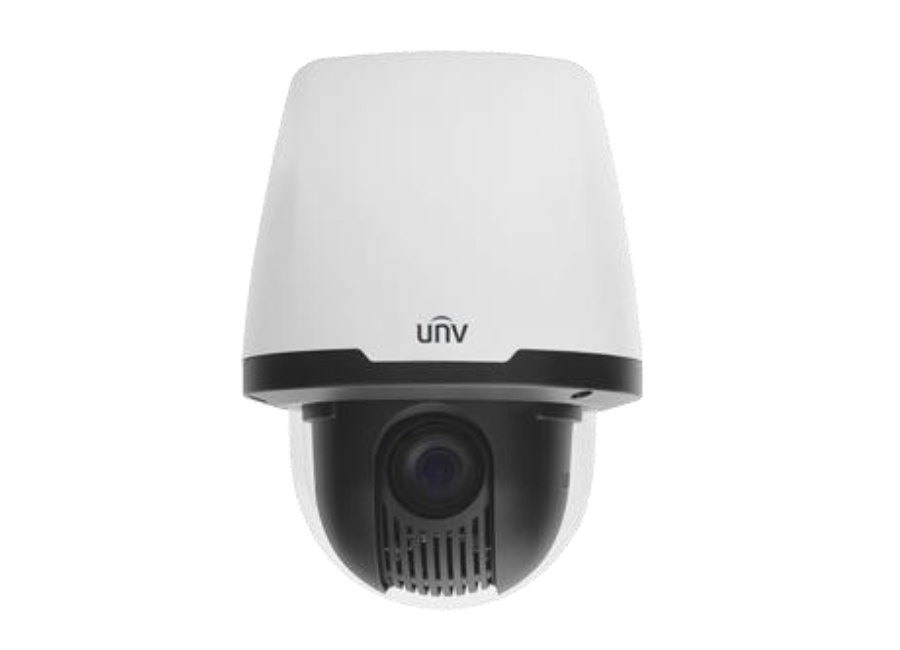

Uniview IPC6222EI X22UP C IP HD Speed Dome Kamera
Özellikler
- Starlight illumination
- 22x optical zoom
- Accurate and fast focusing
- H.265, H.264, MJPEG
- Embedded smart algorithm
- Triple streams
- Customized OSD
- ONVIF Conformance
- Fast installation structure design
- Intelligent temperature control technology
- 6 KV surge protection designed for network interface
- IK10 vandal resistant
- IP65
Teknik Özellikler
| Camera | |
| Sensor | 1/2.8", 2megapixel, progressive scan, CMOS |
| Lens | 5.2 ~ 114.4mm (22x optical zoom) |
| Angle of View (H) | 55.9° (wide) ~ 3.4° (tele) |
| Shutter | Auto/Manual; shutter time: 1/6 s ~ 1/100000 s |
| Minimum Illumination | Colour: 0.002 lux (F1.5, AGC ON) |
| B/W: 0.0002 lux(F1.5, AGC ON) | |
| Iris | Auto/Manual; F1.5 ~ F3.0 |
| Day/Night | IR-cut filter with auto switch (ICR) |
| S/N | >52dB |
| WDR | True WDR (up to 120 dB) |
| Video | |
| Max. Resolution | 1920 × 1080 |
| Video Compression | H.265, H.264, MJPEG |
| Frame Rate | 1080P (1920×1080):Max.30 fps; 720P (1280×720):Max.30 fps; D1 (720×576):Max.8 fps |
| Video Streaming | Triple |
| HLC | Supported |
| Evaluative Metering | Supported |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 8 areas |
| Digital Zoom | Supported |
| Smart | |
| Behavior Detection | Intrusion, crossing line, motion detection |
| Exception Detection | Audio detection |
| Intelligent Identification | Face detection |
| Statistical Analysis | People counting |
| Audio | |
| Audio Compression | G.711 |
| Two-way audio | Supported |
| Storage | |
| Edge Storage | Micro SD, up to 128 GB |
| Network | |
| Protocols | L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP 802.1x |
| Compatible Integration | ONVIF, API |
| Pan & Tilt | |
| Pan Range | 360° (endless) |
| Pan Speed | 0.1°/s ~ 400°/s |
| Preset speed:540°/s | |
| Tilt Range | –20° ~ +90° (auto reverse) |
| Tilt Speed | 0.1° ~ 240°/s |
| Preset speed: 400°/s | |
| Number of Presets | 256 |
| Patrol | Preset patrol, route patrol, recorded patrol |
| Home Position | Supported |
| Interface | |
| Audio I/O | Audio cable |
| 1 Input: impedance 35 kΩ; amplitude 2 V [p-p] | |
| 1 Output: impedance 600 Ω; amplitude 2 V [p-p] | |
| Alarm I/O | 2.Oca |
| Serial Port | 1 RS485 |
| Network | 10M/100M Base-TX Ethernet |
| Video Output | 1 BNC, impedance 75 Ω; amplitude 1 V [p-p] |
| General | |
| Power | 24 V AC, 24 V DC, PoE (IEEE802.3 at) |
| Power consumption: 8~ 20W | |
| Dimensions(ØxH) | Ø195 x 263 mm (Ø7.7” x 10.4”) |
| Weight | 4.2 kg (9.3 lb) |
| Working Environment | –20°C ~ +50°C (-4°F ~ 122°F), Humidity ≤ 95% RH(non-condensing) |
| Vandal Resistant | IK10 |
Uniview IPC6222EI X22UP C IP HD Speed Dome Kamera Pdf Dosyası383.79 KB
Teknik Kısa
Depolama : Var
Çözünürlük : 3MP
Irled : Var
