Açıklama

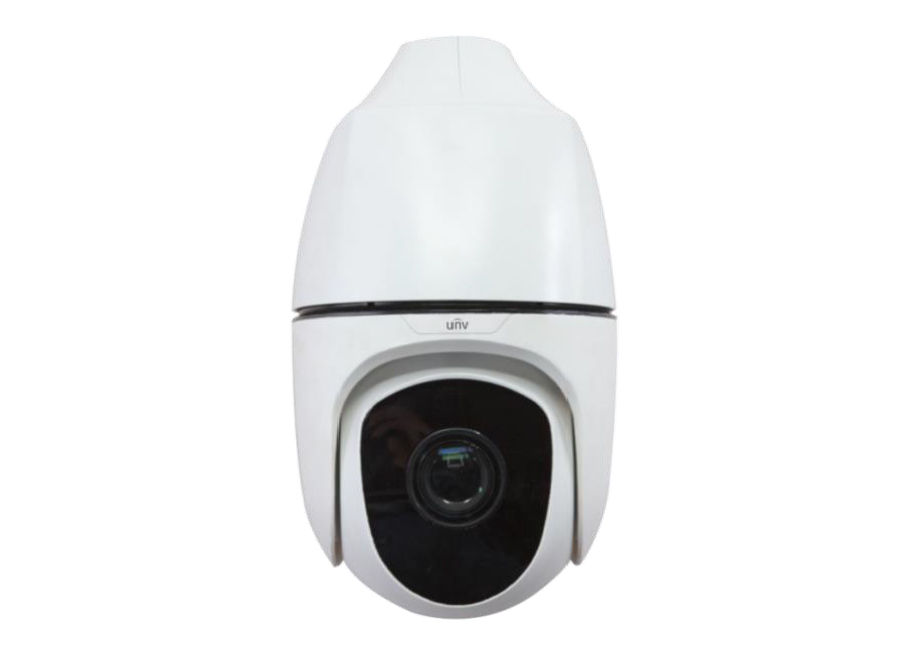

Uniview IPC6858SR X22 IP HD Speed Dome Kamera
Özellikler
- 22X Optical Zoom
- Fifth-generation infrared technology, more than 250m (820ft) IR distance
- IR anti-reflection window to increase the infrared transmittance
- Optical glass window with higher light transmittance
- Smart IR
- EIS (Electronic Image Stabilization)
- 12 Megapixel image
- H.265, H.264, MJPEG
- Embedded smart algorithm
- Triple streams
- Customized OSD
- Network auto-adaptability
- ONVIF Conformance
- Innovative snow-removing functionality
- Intelligent temperature control technology
- More effective heat dissipation system
- 6 KV surge protection designed for network interface
Teknik Özellikler
| Camera | |
| Sensor | 1/1.7" progressive scan, 12megapixel, CMOS |
| Lens | 6.5~ 143 mm (22x optical zoom) |
| Angle of View (H) | 56.7° (wide) ~ 3.07° (tele) |
| Shutter | Auto/Manual, shutter time: 1/6 s ~ 1/8000 s |
| Minimum Illumination | Colour: 0.06 lux (F1.5,AGC ON) |
| 0 lux with IR | |
| Iris | Auto/Manual, F1.5 ~ F3.4 |
| Day/Night | IR-cut filter with auto switch (ICR) |
| S/N | >55 dB |
| Video | |
| Video Compression | H.265, H.264, MJPEG |
| Frame Rate | 12MP (4000×3000): Max. 20 fps; 4K (3840×2160): Max. 30 fps |
| Video Streaming | Triple |
| HLC | Supported |
| Evaluative Metering | Supported |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 8 areas |
| Digital Zoom | Supported |
| Smart | |
| Behavior Detection | Intrusion, crossing line, motion detection |
| Exception Detection | Audio detection |
| Intelligent Identification | Face detection |
| Statistical Analysis | People counting |
| Audio | |
| Audio Compression | G.711 |
| Two-way Audio | Supported |
| Storage | |
| Edge Storage | Micro SD, up to 128 GB |
| Network | |
| Protocols | L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SIP, 802.1x |
| Compatible Integration | ONVIF, API |
| Pan & Tilt | |
| Pan Range | 360° |
| Pan Speed | 0.1°/s ~ 240°/s |
| Preset speed: 300°/s | |
| Tilt Range | –15° ~ +90° (auto reverse) |
| Tilt Speed | 0.1° ~ 160°/s |
| Preset speed: 240°/s | |
| Number of Presets | 256 |
| Patrol | Preset patrol, route patrol, recorded patrol |
| Home Position | Supported |
| Interface | |
| Audio I/O | Audio cable |
| 1 Input: impedance 35 kΩ; amplitude 2 V [p-p] | |
| 1 Output: impedance 600 Ω; amplitude 2 V [p-p] | |
| Alarm I/O | 2/1 |
| Serial Port | 1 RS485 |
| Network | 1 RJ45 10M/100M Base-TX Ethernet |
| Video Output | 1 BNC, impedance 75 Ω; amplitude 1 V [p-p] |
| General | |
| Power | 24 V AC±25% (Default), 24 V DC±25% |
| Power consumption: 16 W ~ 56 W | |
| Dimensions (Ø x H) | Φ270mm×496.7mm(Φ10.6” x 19.6”) |
| Weight | 9.69kg(21.4lb) |
| Working Environment | –45°C ~ +70°C (-49°F ~ 158°F), Humidity ≤ 95% RH(non-condensing) |
| Ingress Protection | IP66 |
Uniview IPC6858SR X22 IP HD Speed Dome Kamera PDF Dosyası392.18 KB
Teknik Kısa
Depolama : Var
Irled : Var
