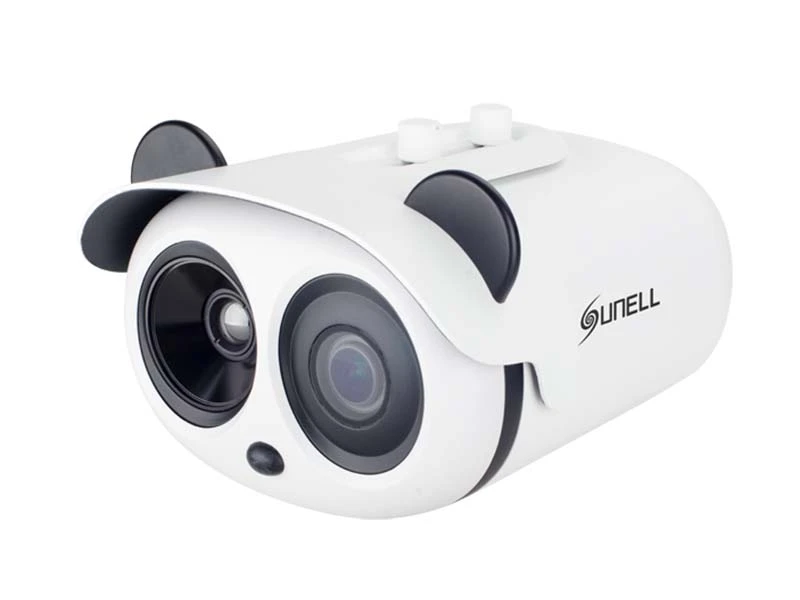

Sunell SN T5 Termal IP Kamera
Özellikler
Teknik Özellikler
| Thermal Camera | |
| Detector Type | Uncooled IRFPA Microbolometer |
| Effective Pixels | 400(H) ×300(V) |
| Pixel Size | 17um |
| Thermal Sensitivity (NETD) | 40mK @F1.0, 300K |
| Spectral Range | 8~14um |
| Image Setting | Polarity LUT/ DVE/ Mirror/ FCC/ /3D DNR Brightness/Contrast/ ROI |
| Color Palettes | Black-Heat /White-Heat/Rainbow/Iron-Red up to 17 modes |
| Thermal Lens | |
| Focus Control | Manual Focus |
| Focal Length | 8mm |
| F No. | F1.0 |
| Angle of View | H: 46°, V: 35° |
| Visible Camera | |
| Image Sensor | 1/1.9" Sony CMOS |
| Effective Resolution | 1920(H)×1080(V) |
| Shutter Speed | 1/50 ~ 1/64,000s |
| Wide Dynamic Range | True WDR 120dB |
| Min. Illumination | Color: 0.01Lux @(F1.2, AGC ON) |
| B/W: 0.001Lux @(F1.2, AGC ON) | |
| S/N Ratio | More than 55dB |
| Visible Lens | |
| Focal Length | 2.7 ~ 12mm |
| Max Aperture | F1.6~ F2.9 |
| Angle of View | 105°~ 32° |
| Optical Zoom | Motorized |
| Focus Control | Motorized |
| Close Focus Distance | 0.2m |
| Video and Audio | |
| Compression | H.265, H.264, MJPEG |
| Frame Rate | Main Stream: |
| Thermal: D1 @25/30fps | |
| Visible: 1920×1080/1280×720 @25/30fps | |
| Sub Stream: | |
| Thermal: CIF @25/30fps | |
| Visible: D1/VGA/640×360/CIF/QCIF/QVGA @25/30fps | |
| Bit Rate Control | CBR/VBR |
| Bit Rate | Thermal: 100Kbps~6Mbps |
| Visible: | |
| main stream: 500Kbps~10Mbps; | |
| sub stream: 100Kbps~6Kbps | |
| Region of Interest | Off / On (8 Zone, Rectangle) |
| Electronic Image Stabilization(EIS) | N/A |
| Digital Zoom | 16x |
| Mirror | Support |
| Defog | Support |
| Motion Detection | Support |
| Privacy Masking | Off / On (4 Area, Rectangle) |
| DVE Image Enhance | Support |
| Audio Compression | G.711, AMR, RAW_PCM (Optional) |
| Intelligence | |
| Smart Alarm | Motion detection, Disk alarm, I/O alarm, Temperature alarm, Temperature warning |
| IVS | Smart Body Detection, Perimeter ,Single Virtual Fences ,Double Virtual Fences ,Object Left ,Object Removed |
| Temperature Detection | |
| Detection Mode | Body temperature monitoring |
| Detection Preset | Max 16 goals |
| Temperature Alarm | Over temperature alarm, Temperature difference alarm |
| Accuracy | ≤ 0.3 ℃ (Emission rate, distance, ambient temperature, etc.) |
| Response Time | ≤30ms |
| Theory of temperature measurement range | -20 °C ~ 60 °C (-4°F ~ 140°F) |
| Temperature display mode | Temperature target ＞5℃, Display absolute temperature value; |
| Temperature target ≤5℃, Display relative temperature value (temperature difference DEV = highest value - average) | |
| Network | |
| Ethernet | RJ-45 (10/100Base-T) |
| Protocols: | IPv4/IPv6 ,HTTP,RTSP/RTP/RTCP, TCP/UDP, DHCP, DNS, PPPOE, SMTP, SIP ,802.1x |
| Interoperability | ONVIF, CGI |
| Streaming Method | Unicast |
| Max. User Access | 10 Users |
| Edge Storage | NAS |
| Local PC for instant recording | |
| Micro SD card 128GB | |
| Web Viewer | <IE11, Firefox, Chrome |
| Web Language | English, Chinese, Polish, Italian, Portuguese, Spanish. Russian, French, Czech, Hungarian |
| Interface | |
| Ethernet | 1 Ethernet (10/100 Base-T) RJ-45 Connector |
| Audio Interface | 1ch Audio In,1ch Audio Out |
| Alarm | 2ch Alarm In,2ch Alarm Out |
| RS485 | Support |
| BNC Output | N/A |
| Reset Button | Support(Built-in) |
| General | |
| Power Supply | DC12V/POE |
| Power Consumption | Max 10W |
| Operating Temperature | -30 °C ~ 60 °C (-22°F ~ 140 °F) |
| Strorage Conditions | 0~ 90% RH |
| Certifications | CE /FCC |
| Ingress Protection | IP66 |
| Casing | Metal |
| Dimensions | 212×182×136mm |
| Net Weight | 2Kg |
Teknik Kısa
Depolama : Var
