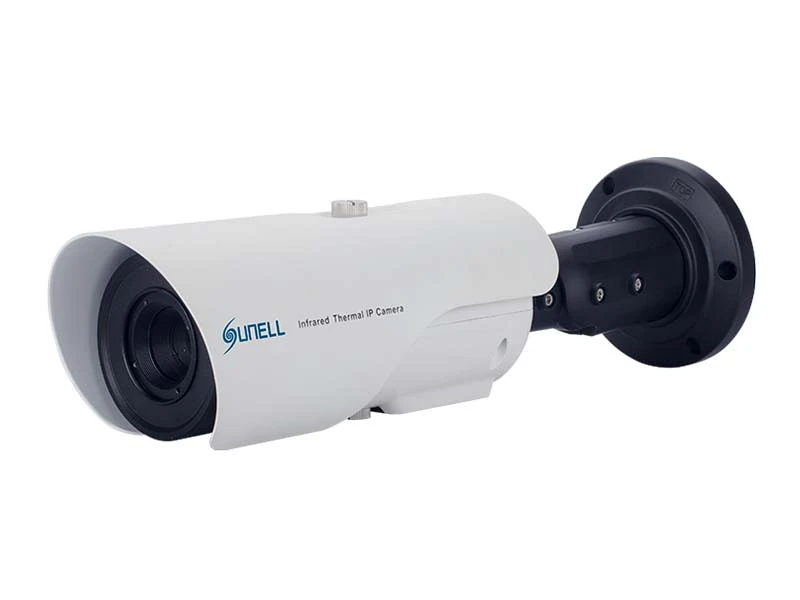

Sunell SN TPC6401KT/F(II) IP Termal Kamera

Özellikler

Uncooled IRFPA Microbolometer
Temperature Detection
Effective Pixels 640×512
Sensitivity ≤40mK
8/15/25/35/50mm lens optional
Support Temperature Detection & Alarm
Support 17 color control
Support DVE image Enhance
2/1 alarm in/out

Teknik Özellikler

Thermal Camera
Detector Type	Uncooled IRFPA Microbolometer
Effective Pixels	640(H) ×512(V)
Pixel Size	17um
Thermal Sensitivity (NETD)	≤40mK @F1.0, 300K
Spectral Range	8~14um
Image Setting	Polarity LUT/ DVE/ Mirror/ FCC/ /3D DNR Brightness/Contrast/ ROI
Color Palettes	Black-Heat /White-Heat/Rainbow/Iron-Red up to 17 modes
Pan/Tilt/	Pan:0˚~360˚; Tilt:0˚~90˚; Rotation:0˚~360
Rotation Range
Thermal Lens
Lens Type	Fixed
Focus Control	Manual Focus
Focal Length	8mm	15mm	25mm	35mm	50mm
F No.	F1.0	F1.0	F1.0	F1.0	F1.0
Angle of View	H: 68°	H: 39°	H: 24°	H: 16°	H: 12°
	V: 57°	V: 32°	V: 18°	V:14°	V:10°
Temperature Detect Distance Fire(0.8m*0.8m)	206m	441m	735m	1029m	1470m
Recognition Distance Man(1.8m*0.5m)	141m	264m	441m	617m	882m
Recognition Distance Vehicle(2.3m*2.3m)	313m	588m	980m	1372m	1960m
Video and Audio
Compression	H.265, H.264, MJPEG
Frame Rate	Main Stream: D1 @50/60fps
	Sub Stream: CIF @50/60fps
Bit Rate Control	CBR/VBR
Bit Rate	100Kbps~6Mbps
Region of Interest	Off / On (8 Zone, Rectangle)
Electronic Image Stabilization(EIS)	N/A
Digital Zoom	16x
Mirror	Support
Defog	Support
Motion Detection	Support
Privacy Masking	Off / On (5 Area, Rectangle)
DVE Image Enhance	Support
Audio Compression	G.711, AMR, RAW_PCM (Optional)
Intelligence
Intelligent Functions	Motion detection, Disk alarm, I/O alarm, Temperature alarm
IVS	Perimeter ,Single Virtual Fences ,Double Virtual Fences ,Object Left ,Object Removed
Temperature Detection
Detection Mode	Spot, Line, Area
Detection Preset	Spot: 20, Line: 2, Area: 16
Temperature Alarm	Over temperature alarm, Temperature difference alarm
Accuracy	±2℃ / ±2%
Response Time	≤30ms
Effective temperature working environment	-40 °C ~ 60 °C (-40°F ~ 140 °F)
Theory of temperature measurement range	-40 °C ~ 200 °C (-40°F ~ 392 °F)
Temperature display mode	Temperature target ＞5℃, Display absolute temperature value;
	Temperature target ≤5℃, Display relative temperature value (temperature difference DEV = highest value - average)
Network
Ethernet	RJ-45 (10/100Base-T)
Protocols:	IPv4/IPv6 ,HTTP,RTSP/RTP/RTCP, TCP/UDP, DHCP, DNS, PPPOE, SMTP, SIP ,802.1x
Interoperability	ONVIF, CGI
Streaming Method	Unicast
Max. User Access	10 Users
Edge Storage	NAS
	Local PC for instant recording
	Mirco SD card 128GB
Web Viewer	<IE11, Chrome, Firefox
Web Language	English, Chinese, Polish, Italian, Portuguese, Spanish. Russian, French, Czech, Hungarian
Interface
Ethernet	1 Ethernet (10/100 Base-T) RJ-45 Connector
Audio Interface	1ch Audio In,1ch Audio Out
Alarm	2ch Alarm In,2ch Alarm Out
RS485	Support
BNC Output	Support
Reset Button	Support
General
Power Supply	DC12V/POE/AC24V
Power Consumption	Max 5W
Operating Temperature	-40 °C ~ 60 °C (-40°F ~ 140 °F)
Strorage Conditions	0~ 90% RH
Certifications	CE /FCC
Ingress Protection	IP66
Casing	Metal
Dimensions	φ110×388mm
Net Weight	1900g
