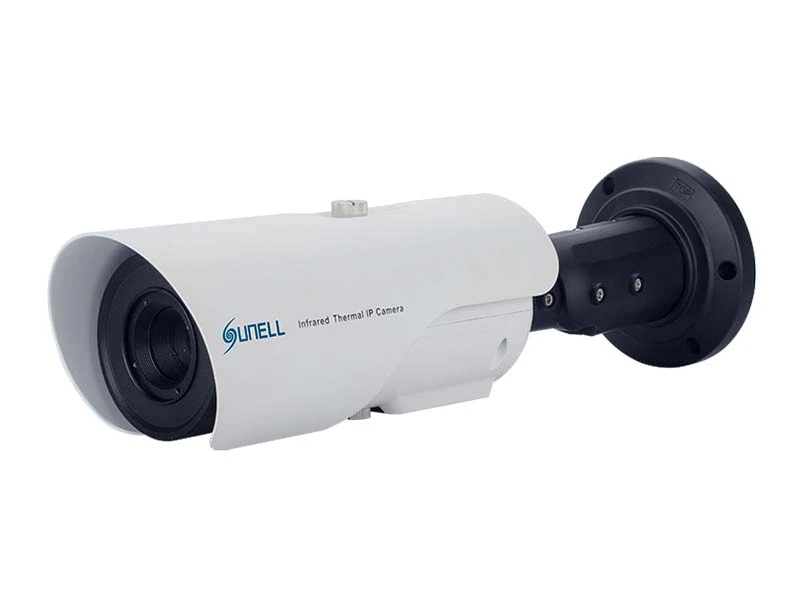

Sunell SN TPC4201KT/F(II) IP Termal Kamera
Özellikler
Teknik Özellikler
| Thermal Camera | |||||
| Detector Type | Uncooled IRFPA Microbolometer | ||||
| Effective Pixels | 400(H) ×300(V) | ||||
| Pixel Size | 20um | ||||
| Thermal Sensitivity (NETD) | 50mK @F1.0, 300K | ||||
| Spectral Range | 8~14um | ||||
| Image Setting | Polarity LUT/ DVE/ Mirror/ FCC/ /3D DNR Brightness/Contrast/ ROI | ||||
| Color Palettes | Black-Heat /White-Heat/Rainbow/Iron-Red up to 17 modes | ||||
| Pan/Tilt/ | Pan:0˚~360˚; Tilt:0˚~90˚; Rotation:0˚~360 | ||||
| Rotation Range | |||||
| Thermal Lens | |||||
| Lens Type | Fixed | ||||
| Focus Control | Manual Focus | ||||
| Focal Length | 8mm | 15mm | 25mm | 35mm | 50mm |
| F No. | F1.0 | F1.0 | F1.0 | F1.0 | F1.0 |
| Angle of View | H: 43.6° | H: 24° | H: 14.6° | H: 10.5° | H: 7.3° |
| V:18° | V:18° | V:11° | V:7.8° | V:5.5° | |
| Temperature Detect Distance Fire(0.8m*0.8m) | 160m | 300m | 500m | 700m | 1000m |
| Recognition Distance Man(1.8m*0.5m) | 120m | 225m | 375m | 525m | 750m |
| Recognition Distance Vehicle(2.3m*2.3m) | 260m | 500m | 830m | 1160m | 1660m |
| Video and Audio | |||||
| Compression | H.265, H.264, MJPEG | ||||
| Frame Rate | Main Stream: D1 @25/30fps | ||||
| Sub Stream: CIF @25/30fps | |||||
| Bit Rate Control | CBR/VBR | ||||
| Bit Rate | 100Kbps~6Mbps | ||||
| Region of Interest | Off / On (8 Zone, Rectangle) | ||||
| Electronic Image Stabilization(EIS) | N/A | ||||
| Digital Zoom | 16x | ||||
| Mirror | Support | ||||
| Defog | Support | ||||
| Motion Detection | Support | ||||
| Privacy Masking | Off / On (5 Area, Rectangle) | ||||
| DVE Image Enhance | Support | ||||
| Audio Compression | G.711, AMR, RAW_PCM (Optional) | ||||
| Intelligence | |||||
| Intelligent Functions | Motion detection, Disk alarm, I/O alarm, Temperature alarm | ||||
| IVS | Perimeter ,Single Virtual Fences ,Double Virtual Fences ,Object Left ,Object Removed | ||||
| Temperature Detection | |||||
| Temperature Detection | Point detection, Area detection | ||||
| Temperature Alarm | Over temperature alarm, Temperature difference alarm | ||||
| Precision | ±2℃ / ±2% | ||||
| Detection Area | Support 8 areas (8 target) | ||||
| Response Time | ≤30ms | ||||
| Effective temperature working environment | -10 °C ~ 50 °C (14°F ~ 122 °F) | ||||
| Theory of temperature measurement range | -30 °C ~ 200 °C (-22°F ~ 392 °F) | ||||
| Temperature display mode | Temperature target ＞5℃, Display absolute temperature value; | ||||
| Temperature target ≤5℃, Display relative temperature value (temperature difference DEV = highest value - average) | |||||
| NETWORK | |||||
| Ethernet | RJ-45 (10/100Base-T) | ||||
| Protocols | IPv4/IPv6 ,HTTP,RTSP/RTP/RTCP, TCP/UDP, DHCP, DNS, PPPOE, SMTP, SIP ,802.1x | ||||
| Interoperability | ONVIF, CGI | ||||
| Streaming Method | Unicast | ||||
| Max. User Access | 10 Users | ||||
| Edge Storage | NAS | ||||
| Local PC for instant recording | |||||
| Mirco SD card 128GB | |||||
| Web Viewer | <IE11, Chrome, Firefox | ||||
| Web Language | English, Chinese, Polish, Italian, Portuguese, Spanish. Russian, French, Czech, Hungarian | ||||
| INTERFACE | |||||
| Ethernet | 1 Ethernet (10/100 Base-T) RJ-45 Connector | ||||
| Audio Interface | 1ch Audio In,1ch Audio Out | ||||
| Alarm | 2ch Alarm In,2ch Alarm Out | ||||
| RS485 | Support | ||||
| BNC Output | Support | ||||
| Reset Button | Support | ||||
| GENERAL | |||||
| Power Supply | DC12V/POE | ||||
| Power Consumption | Max 5W | ||||
| Operating Temperature | -10 °C ~ 55 °C (14°F ~ 131 °F) | ||||
| Strorage Conditions | 0~ 90% RH | ||||
| Certifications | CE /FCC | ||||
| Ingress Protection | IP66 | ||||
| Casing | Metal | ||||
| Dimensions | φ110×388mm | ||||
| Net Weight | 1900g | ||||
Sunell SN TPC4201KT/F(II) IP Termal Kamera Pdf Dosyası512.5 KB
