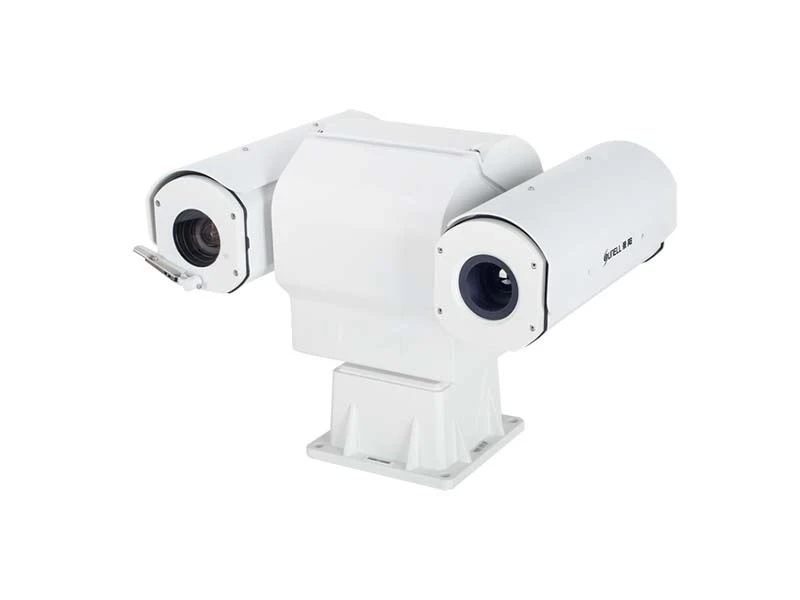

Sunell SN TPC4231LZ/F(II) IP Termal Kamera

Özellikler

Uncooled IRFPA Microbolometer
Temperature detection
Effective Pixels 400×300
Sensitivity 50mK
8//25/50mm Motorized lens optional
Infrared detection wavelength 8-14um
Support 8 areas temperature Detection
Support 17 color control
Support DVE image Enhance
Standalone operating

Teknik Özellikler

Thermal Camera
Detector Type	Uncooled IRFPA Microbolometer
Effective Pixels	400(H) ×300(V)
Pixel Size	20um
Thermal Sensitivity (NETD)	50mK @F1.0, 300K
Spectral Range	8~14um
Image Setting	Polarity LUT/ DVE/ Mirror/ FCC/ /3D DNR Brightness/Contrast/ ROI
Color Palettes	Black-Heat /White-Heat/Rainbow/Iron-Red up to 17 modes
Thermal Lens
Lens Type	Fixed
Focus Control	Manual Focus
Focal Length	8mm	15mm	25mm	35mm	50mm
F No.	F1.0	F1.0	F1.0	F1.0	F1.0
Angle of View	H: 43.6°	H: 24°	H: 14.6°	H: 10.5°	H: 7.3°
	V: 36.4°	V: 18°	V: 11°	V: 7.8°	V: 5.5°
Temperature Detect Distance Fire(0.8m*0.8m)	160m	300m	500m	700m	1000m
Recognition Distance Man(1.8m*0.5m)	120m	225m	375m	525m	750m
Recognition Distance Vehicle(2.3m*2.3m)	260m	500m	830m	1160m	1660m
Visible Camera
Image Sensor	1/1.9" Sony CMOS
Effective Resolution	1920(H)×1080(V)
Shutter Speed	1/5 ~ 1/20,000s
Min. Illumination	Color: 0.001Lux @(F1.2, AGC ON),
	B/W: 0.1Lux
S/N Ratio	More than 55dB
Visible Lens
Focal Length	6 ~ 180mm
Max Aperture	F1.5 ~ F4.3
Angle of View	H: 59° ~ 2.4°
Optical Zoom	30x
Focus Control	Auto / Manual
Close Focus Distance	100mm~ 1000mm (0.33ft~3.28ft)
PTZ
Pan/Tilt Range	Pan: ° ~ 360° endless; Tilt: +90° ~ -90°
Pan/Tilt Speed	Pan: 0.01° ~60° /s; Tilt: 0.01° ~30° /s
Preset Speed	Pan: 0.01° ~60° /s; Tilt: 0.01° ~30° /s
Presets	400
PTZ Mode	8 Auto Scan, 12 Tour, 6 Track
Speed Setup	Auto/Manual (0-8),
Power Off Memory	Support
Idle Motion	Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period
Protocol	SN-SD, Pelco-D
Video and Audio
Compression	H.265, H.264, MJPEG
Frame Rate	Main Stream:
	Thermal: D1 @25/30fps
	Visible: 1920×1080/1280×720 @25/30fps
	Sub Stream:
	Thermal: CIF @25/30fps
	Visible: D1/VGA/640×360/CIF/QCIF/QVGA @25/30fps
Bit Rate Control	CBR/VBR
Bit Rate	Thermal: 100Kbps~6Mbps
	Visible:
	main stream: 500Kbps~12Mbps;
	sub stream: 100Kbps~6Kbps
Region of Interest	Off / On (8 Zone, Rectangle)
Electronic Image Stabilization(EIS)	N/A
Digital Zoom	16x
Mirror	Support
Defog	Support
Motion Detection	Support
Privacy Masking	Off / On (4 Area, Rectangle)
DVE Image Enhance	Support
Audio Compression	G.711, AMR, RAW_PCM (Optional)
Intelligence
Intelligent Functions	Motion detection, Disk alarm, I/O alarm, Temperature alarm
IVS	Perimeter ,Single Virtual Fences ,Double Virtual Fences ,Object Left ,Object Removed
Temperature Detection
Temperature Detection	Point detection, Area detection
Temperature Alarm	Over temperature alarm, Temperature difference alarm
Precision	Max (±2℃, ±2%)
Detection Area	Support 8 areas (8 target)
Response Time	≤30ms
Effective temperature working environment	-10 °C ~ 55 °C (14°F ~ 131 °F)
Theory of temperature measurement range	-30 °C ~ 200 °C (-22°F ~ 392 °F)
Temperature display mode	Temperature target ＞5℃, Display absolute temperature value;
	Temperature target ≤5℃, Display relative temperature value (temperature difference DEV = highest value - average)
Network
Ethernet	RJ-45 (10/100Base-T)
Protocols	IPv4/IPv6 ,HTTP,RTSP/RTP/RTCP, TCP/UDP, DHCP, DNS, PPPOE, SMTP, SIP ,802.1x
Interoperability	ONVIF, CGI
Streaming Method	Unicast
Max. User Access	10 Users
Edge Storage	NAS
	Local PC for instant recording
	Mirco SD card 128GB
Web Viewer
Web Language	English, Chinese, Polish, Italian, Portuguese, Spanish. Russian, French, Czech, Hungarian
Interface
Ethernet	1 Ethernet (10/100 Base-T) RJ-45 Connector
Audio Interface	2ch Audio In,2ch Audio Out
Alarm	9ch Alarm In,4ch Alarm Out
RS485	Support
BNC Output	Support
Reset Button	Support(Built-in)
General
Power Supply	AC24V/DC24V
Power Consumption	Max 80W
Operating Temperature	-10 °C ~ 55 °C (14°F ~ 131 °F)
Strorage Conditions	0~ 90% RH
Certifications	CE /FCC
Ingress Protection	IP66
Casing	Metal
Dimensions	282×419×316mm
Net Weight	16Kg
