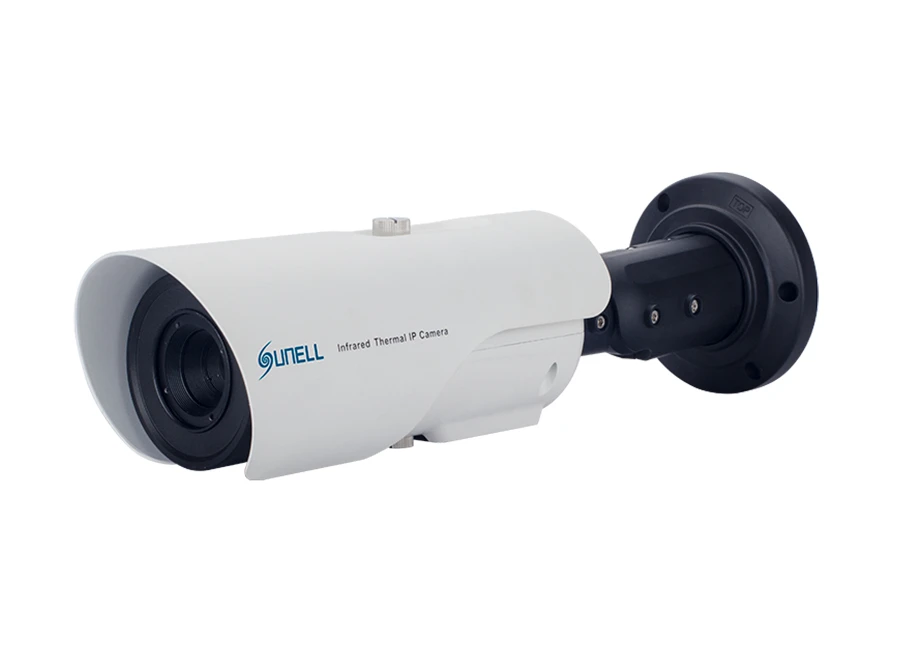

| Thermal Camera |
| Detector Type | Uncooled IRFPA Microbolometer |
| Effective Pixels | 400(H) ×300(V) |
| Pixel Size | 17um |
| Thermal Sensitivity (NETD) | 40mK @F1.0, 300K |
| Spectral Range | 8~14um |
| Image Setting | Polarity LUT/ DVE/ Mirror/ FCC/ /3D DNR Brightness/Contrast/ ROI |
| Color Palettes | Black-Heat /White-Heat/Rainbow/Iron-Red up to 17 modes |
| Pan/Tilt/Rotation Range | Pan:0˚~360˚; Tilt:0˚~90˚; Rotation:0˚~360 |
| Thermal Lens |
| Lens Type | Fixed |
| Focus Control | Manual Focus |
| Focal Length | 8mm | 15mm | 25mm | 35mm | 50mm |
| F No. | F1.0 | F1.0 | F1.0 | F1.0 | F1.0 |
| Angle of View | H: 46° | H:25.5° | H:15.4° | H: 11° | H: 7.7° |
| V:35.3° | V:19.2° | V:11.6° | V:9° | V:5.8° |
| Detection Distance Fire(1m*1m) | 235m | 441m | 735m | 1029m | 1471m |
| Detection Distance Man(1.8m*0.5m) | 235m | 441m | 735m | 1029m | 1471m |
| Detection Distance Vehicle(4m*1.5m) | 722m | 1353m | 2255m | 3137m | 4510m |
| Recognition Distance Fire(1m*1m) | 78m | 147m | 245m | 343m | 490m |
| Recognition Distance Man(1.8m*0.5m) | 59m | 110m | 184m | 257m | 368m |
| Recognition Distance Vehicle(4m*1.5m) | 180m | 338m | 564m | 789m | 1127m |
| Video and Audio |
| Compression | H.265, H.264, MJPEG |
| Frame Rate | Main Stream: D1 @25/30fps |
| | Sub Stream: CIF @25/30fps |
| Bit Rate Control | CBR/VBR |
| Bit Rate | 100Kbps~6Mbps |
| Region of Interest | Off / On (8 Zone, Rectangle) |
| Electronic Image Stabilization(EIS) | N/A |
| Digital Zoom | 16x |
| Mirror | Support |
| Defog | Support |
| Motion Detection | Support |
| Privacy Masking | Off / On (5 Area, Rectangle) |
| DVE Image Enhance | Support |
| Audio Compression | G.711, AMR, RAW_PCM (Optional) |
| Intelligence |
| Intelligent Functions | Motion detection, Disk alarm, I/O alarm, Temperature alarm |
| IVS | Perimeter, Single Virtual Fences, Double Virtual Fences, Object Left, Object Removed |
| Temperature Detection |
| Detection Mode | Spot, Line, Area |
| Detection Preset | Support 3 temperature measurement rule types, |
| 20 rules (20 points / 2 lines / 16 regions ) |
| Temperature Alarm | Over temperature alarm, Temperature difference alarm |
| Accuracy | ±2℃ / ±2% |
| Response Time | ≤30ms |
| Effective temperature working environment | -40 °C ~ 60 °C (-40°F ~ 140 °F) |
| Theory of temperature measurement range | -40 °C ~ 150 °C (-40°F ~ 302 °F) |
| Temperature display mode | Temperature target ＞5℃, Display absolute temperature value, |
| Temperature target ≤5℃, Display relative temperature value (temperature difference DEV = highest value - average) |
| NETWORK |
| Ethernet | RJ-45 (10/100Base-T) |
| Protocols: | IPv4/IPv6 ,HTTP,RTSP/RTP/RTCP, TCP/UDP, DHCP, DNS, PPPOE, SMTP, SIP ,802.1x |
| Interoperability | ONVIF, CGI |
| Streaming Method | Unicast |
| Max. User Access | 10 Users |
| Edge Storage | NAS |
| Local PC for instant recording |
| Micro SD card 128GB |
| Web Viewer | <IE11, Chrome, Firefox |
| Web Language | English, Chinese, Polish, Italian, Portuguese, Spanish. Russian, French, Czech, Hungarian |
| INTERFACE |
| Ethernet | 1 Ethernet (10/100 Base-T) RJ-45 Connector |
| Audio Interface | 1ch Audio In,1ch Audio Out |
| Alarm | 2ch Alarm In,2ch Alarm Out |
| RS485 | Support |
| BNC Output | Support |
| Reset Button | Support |
| GENERAL |
| Power Supply | DC12V/POE |
| Power Consumption | Max 5W |
| Operating Temperature | -40 °C ~ 60 °C (-40°F ~ 140 °F) |
| Storage Conditions | 0~ 90% RH |
| Certifications | CE /FCC |
| Ingress Protection | IP66 |
| Casing | Metal |
| Dimensions | φ110×388mm |
| Net Weight | 1900g |
