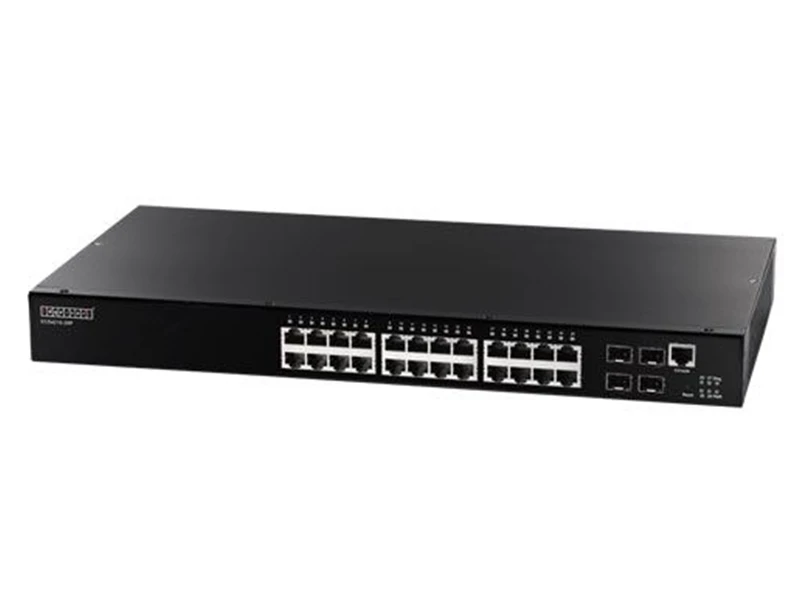

Edge-corE ECS4210 28P 10/100/1000 PoE Switch
Özellikler
Teknik Özellikler
| Ports |
| 24x RJ-45 10/100/1000Mbps Ports |
| 4x SFP Ports |
| Performance |
| Switching Capacity: 56Gbps |
| Forwarding Rate: 41.7Mpps |
| Flash Memory: 32M |
| DRAM: 128M |
| MAC Address Table: 16K |
| PoE |
| PoE Support on 24 Ports |
| Power Consumption: 30 Watts |
| PoE Power Budget: 400W |
| L2 Features |
| IGMP Snooping: V1,V2,V3 |
| Link Aggregation: IEEE 802.3ad with LACP (Dynamic), Static Trunk |
| Multicast (IGMP) Snooping: Querier Support, Immediate Leave, IGMP Filtering, IGMP Throtting |
| Spanning Tree: IEEE 802.1D (STP), IEEE 802.1w (RSTP), IEEE 802.1s (MSTP), BPDU Filter, Root Guard, BPDU Guard, Loopback Detection |
| Storm Control: Broadcast, Multicast, Un-known Unicast |
| VLAN: IEEE 802.1Q Tagged Based, Private VLAN, Port Based, Voice VLAN |
| QoS Features |
| CoS: IEEE 802.1p, IP Precedence, DSCP, TCP/UDP, ACL |
| Priority Queue Scheduling: WRR, Strict Priority, Hybrid |
| Rate Limiting: Ingress, Egress |
| Mechanical |
| Dimension: 44 x 22 x 4.4cm |
| Weight: 3.13Kg |
| Power Supply |
| 100 - 240VAC, 50/60Hz |
| Max Power Consumption: 460W |
| Environmental |
| Operating Temperature: 0 to 50 C |
| Storage Temperature: -40 to 70 C |
| Operating Humidity (non-condensing): 10% to 90% |
| Storage Humidity (non-condensing): 10% to 90% |
Teknik Kısa
PoE : PoE
Port Hızı : 100 Mbps
Yönetilebilirlik : Yönetilebilir Layer 2
Aktarım Port Sayısı : 4
Aktarım Türü : Gbit Fiber
PoE Port Sayısı :
28 Port
28 Port PoE Güç Bütçesi : 200-400 Watt
