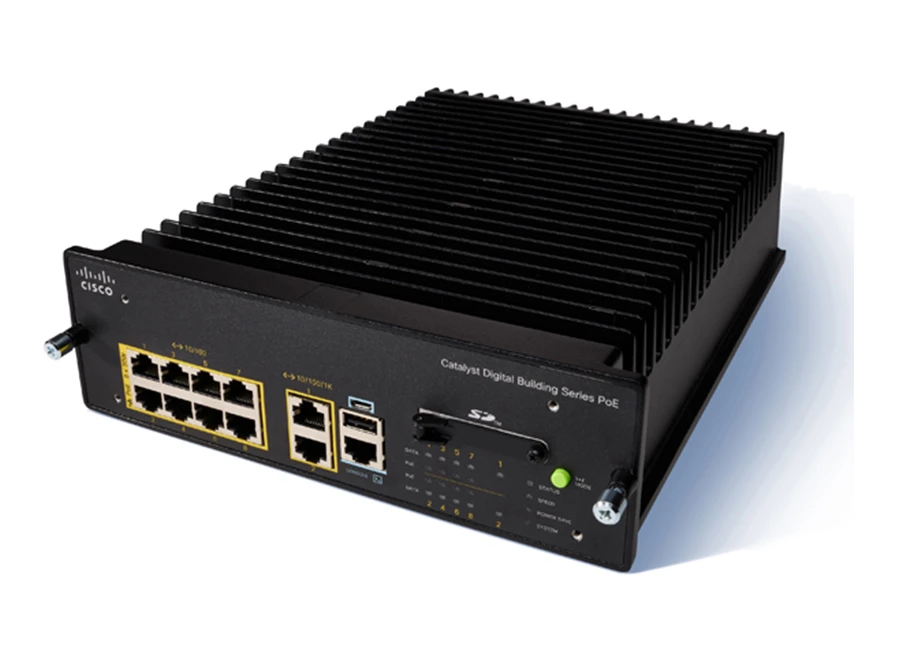

Cisco Catalyst CDB 8P PoE Switch
Özellikler
Teknik Özellikler
General | |
Device Type | Switch - Managed |
Enclosure Type | Rack-mountable |
Subtype | Fast Ethernet |
Ports | 8 x 10/100 + 2 x 10/100/1000 (uplink) |
Power Over Ethernet (PoE) | PoE+ |
PoE Budget | 240 W |
Performance | Forwarding bandwidth: 2.8 Gbps |
Switching bandwidth: 5.6 Gbps | |
Forwarding performance (64-byte packet size): 4.2 Mpps | |
Capacity | VLANs supported: 64 |
VLAN IDs: 1 - 4094 | |
Maximum transmission unit (MTU) (bytes): up to 1500 | |
Port channels: 6 | |
Queues per port (egress): 4 | |
ACL: 180 | |
MAC Address Table Size | 8192 entries |
Routing Protocol | IGMP, IGMPv3 |
Remote Management Protocol | SNMP 1, SNMP 2, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP |
Authentication Method | RADIUS, TACACS+, WebAuth, MACAuth |
Features | DHCP support, BOOTP support, ARP support, DiffServ support, IPv6 support, Spanning Tree Protocol (STP) support, Access Control List (ACL) support, fanless, LLDP support, DHCP relay, Link Aggregation Control Protocol (LACP), ceiling mountable, Class of Service (CoS), 802.1x authentication, VLAN Trunking Protocol (VTP), Internet Control Message Protocol (ICMP), Network Timing Protocol (NTP), LLDP-MED, CoAP support, secure boot, PVLAN edge, Network-as-a-sensor (NaaS) support, Network-as-an-enforcer (NaaE) support, hibernate mode, Energy-Efficient Ethernet (EEE), IF MIB v3 |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, Bluetooth 4.0 |
RAM | 512 MB |
Flash Memory | 256 MB |
Status Indicators | Port transmission speed, power, system, status, PoE |
Expansion / Connectivity | |
Interfaces | 8 x 100Base-TX RJ-45 PoE+ |
2 x 1000Base-X RJ-45 uplink | |
1 x console RJ-45 | |
1 x console (USB) Type A | |
1 x console (micro-USB) Type B | |
Expansion Slots | 1 (total) / 1 (free) x SD Memory Card |
Power | |
Power Device | Internal power supply |
Installed Qty | 1 |
Power Provided | 280 Watt |
Voltage Required | AC 120/230 V |
Features | 80 PLUS Gold efficiency |
Miscellaneous | |
MTBF | 910,260 hours |
Compliant Standards | EN55022, EN55024, FCC Part 15, UL 2043, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, FCC CFR47, GB 4943, KCC Class A, CAN/CSA C22.2 No. 60950-1, IEC 60825, VCCI Class A, KN22, KN24, VCCI V-3/2007.04 Class A, UL 2108 |
Software / System Requirements | |
Software Included | Cisco IOS LAN Lite |
Dimensions & Weight | |
Width | 6.98 cm |
Depth | 22.15 cm |
Height | 28.12 cm |
Weight | 4.38 kg |
Manufacturer Warranty | |
Service & Support | Limited warranty - advance hardware replacement - lifetime - response time: next business day |
Technical support - 90 days | |
Environmental Parameters | |
Min Operating Temperature | -5 °C |
Max Operating Temperature | 50 °C |
Humidity Range Operating | 5 - 95% (non-condensing) |
Min Storage Temperature | -25 °C |
Max Storage Temperature | 70 °C |
Humidity Range Storage | 5 - 95% (non-condensing) |
Teknik Kısa
PoE : PoE Plus
Port Hızı : 100 Mbps
Aktarım Port Sayısı : 2
Aktarım Türü : Rj45
Montaj Tipi : Rack Mount
PoE Port Sayısı : 8 Port
PoE Güç Bütçesi : 200-400 Watt
