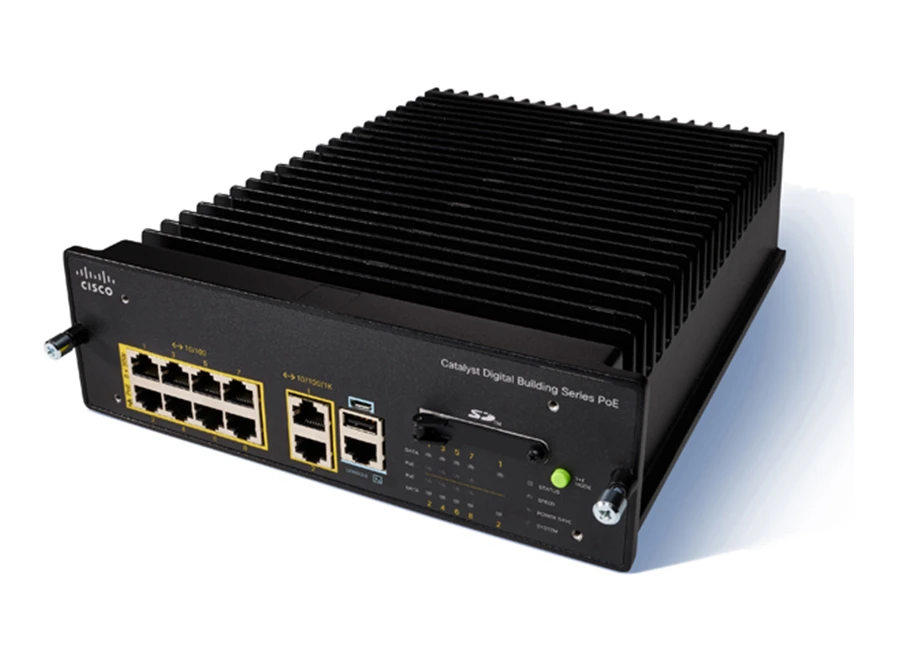

Cisco Catalyst CDB 8U PoE Switch
Özellikler
- 480W of UPOE power (60W per port)
- 8 x 10/100 UPOE ports, 2 x 10/100/1000 uplinks
- Fan-less design
- Fixed power supply
- Enhanced Limited Lifetime Warranty (E-LLW)
Teknik Özellikler
General | |
Device Type | Switch - managed |
Enclosure Type | Rack-mountable |
Subtype | Fast Ethernet |
Ports | 8 x 10/100 + 2 x 10/100/1000 (uplink) |
Power Over Ethernet (PoE) | UPOE |
PoE Budget | 480 W |
Performance | Forwarding bandwidth: 2.8 Gbps Switching bandwidth: 5.6 Gbps Forwarding performance (64-byte packet size): 4.2 Mpps |
Capacity | VLANs supported: 64 VLAN IDs: 1 - 4094 Maximum transmission unit (MTU) (bytes): up to 1500 MAC address entries: 8192 Port channels: 6 Queues per port (egress): 4 ACL: 180 |
Routing Protocol | IGMP, IGMPv3 |
Remote Management Protocol | SNMP 1, SNMP 2, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP |
Authentication Method | RADIUS, TACACS+, WebAuth, MACAuth |
Features | DHCP support, BOOTP support, ARP support, DiffServ support, IPv6 support, Spanning Tree Protocol (STP) support, Access Control List (ACL) support, fanless, LLDP support, DHCP relay, Link Aggregation Control Protocol (LACP), ceiling mountable, Class of Service (CoS), 802.1x authentication, VLAN Trunking Protocol (VTP), Internet Control Message Protocol (ICMP), Network Timing Protocol (NTP), LLDP-MED, CoAP support, secure boot, PVLAN edge, Network-as-a-sensor (NaaS) support, Network-as-an-enforcer (NaaE) support, hibernate mode, Energy-Efficient Ethernet (EEE), IF MIB v3 |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, Bluetooth 4.0 |
RAM | 512 MB |
Flash Memory | 256 MB |
Status Indicators | Port transmission speed, power, system, status, PoE |
Expansion / Connectivity | |
Interfaces | 8 x 100Base-TX RJ-45 60 W 2 x 1000Base-X RJ-45 uplink 1 x console RJ-45 1 x console (USB) Type A 1 x console (micro-USB) Type B |
Expansion Slots | 1 (total) / 1 (free) x SD Memory Card |
Power | |
Power Device | Internal power supply |
Installed Qty | 1 |
Power Provided | 545 Watt |
Voltage Required | AC 100 - 277 V |
Features | 80 PLUS Gold efficiency |
Miscellaneous | |
MTBF | 710,270 hours |
Compliant Standards | Plug and Play, EN55022, EN55024, FCC Part 15, UL 2043, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, FCC CFR47, GB 4943, KCC Class A, CAN/CSA C22.2 No. 60950-1, IEC 60825, VCCI Class A, KN22, KN24, VCCI V-3/2007.04 Class A, UL 2108 |
Software / System Requirements | |
Software Included | Cisco Prime Infrastructure, Cisco Network Assistant, Cisco Active Advisor, Cisco Energy Manager |
Dimensions & Weight | |
Width | 2.7 in |
Depth | 8.7 in |
Height | 11.1 in |
Weight | 9.66 lbs |
Manufacturer Warranty | |
Service & Support | Limited warranty - advance hardware replacement - lifetime - response time: next business dayTechnical support - 90 days |
Environmental Parameters | |
Min Operating Temperature | 23 °F |
Max Operating Temperature | 122 °F |
Humidity Range Operating | 5 - 95% (non-condensing) |
Min Storage Temperature | -13 °F |
Max Storage Temperature | 158 °F |
Humidity Range Storage | 5 - 95% (non-condensing) |
Teknik Kısa
PoE : PoE
Port Hızı : 100 Mbps
Aktarım Port Sayısı : 2
Aktarım Türü : Rj45
Montaj Tipi : Rack Mount
PoE Port Sayısı : 8 Port
PoE Güç Bütçesi : 400-800 Watt
Montaj Tipi : Rack Mount
