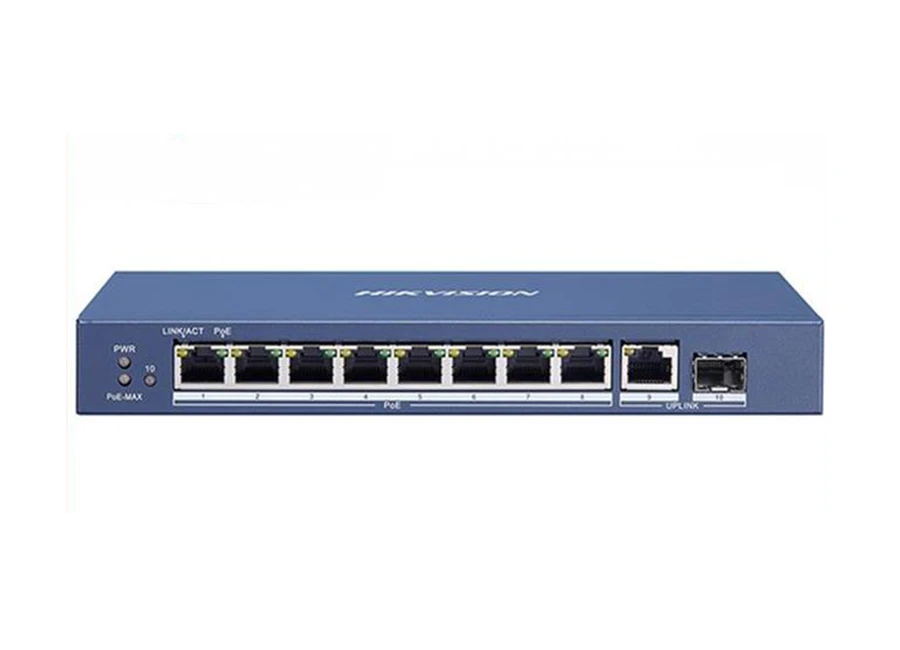

Hikvision DS 3E0510P E PoE Switch
Özellikler
- 8 × gigabit PoE ports, 1 × gigabit RJ45 port, and 1 × gigabit SFP fiber optical port.
- IEEE 802.3at/af standard.
- IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z standard.
- PoE port with 6 KV surge protection.
- PoE output power management.
- Gigabit network access.
- Wire-speed forwarding and non-blocking design.
- Store-and-forward switching.
- Solid high-strength metal shell.
- Fan-free design with high reliability.
Teknik Özellikler
Item | |
Item | DS-3E0510P-E |
Backplane | |
Backplane | 20 Gbps |
Forwarding rate | |
Forwarding rate | 14.88 Mpps |
MAC | |
MAC | 4 K |
Ports | |
Ports | 8 × gigabit PoE ports, 1 × gigabit RJ45 port, and 1 × gigabit SFP fiber optical port |
Dimensions(W×D×H)(mm) | |
Dimensions(W×D×H)(mm) | 217.6 mm × 27.8 mm × 108.55 mm (8.6” × 1.1” × 4.3”) |
POE/POE+ | |
POE/POE+ | IEEE 802.3af, IEEE 802.3at |
POE power consumption | |
POE power consumption | 120 W |
Power supply | |
Power supply | 48 VDC, 2.5 A |
Environment | |
Environment | Operating temperature 0˚C to 40˚C (32˚F to 104˚F) |
Storage temperature –40˚C to 85˚C (–40˚F to 185˚F) | |
Operating humidity 5% to 95% (no condensation) | |
Storage humidity 5% to 95% (no condensation) |
Teknik Kısa
PoE : PoE
Yönetilebilirlik : Yönetilemez
Aktarım Port Sayısı : 2
PoE Port Sayısı : 8 Port
PoE Güç Bütçesi : 50-130 Watt
Port Hızı : 1 GBit
