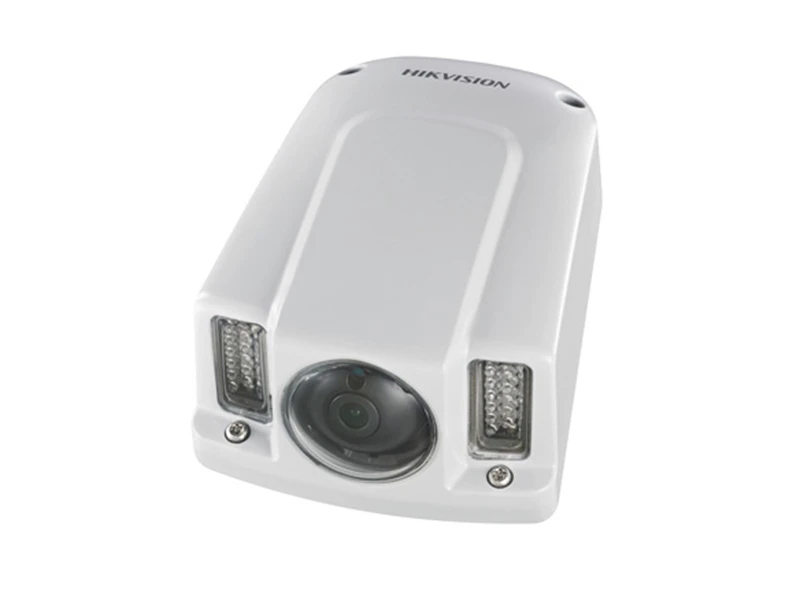

Hikvision DS 2CD6522 IO Mobil IP Kamera

Özellikler

Up to 2.0 megapixel high resolution
920 × 1080 @30fps video
Three video streams
4mm/6mm/8mm/12mm fixed lens
120dB Wide Dynamic Range
3D Digital Noise Reduction
3-axis adjustment
Up to 128 GB on-board storage
DC12V & PoE (802.3af)
20 m to 30 m IR range
Build-in Heater
IP68 weather-proof protection
IK10
M12 aviation plug (optional)
Multiple smart events supported

Teknik Özellikler

Camera
Image Sensor	1/2.7” Progressive Scan CMOS
Min. Illumination	0.01Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter time	1/3 s to 1/100,000 s, support auto electronic shutter
Slow shutter	support
Lens	6 mm, horizontal field of view 53.9°[4 mm (90°), 8 mm (37.9°), 12 mm (24.3°), optional]
Lens Mount	M12
Day& Night	IR cut filter with auto switch
Wide Dynamic Range	120 dB
Digital noise reduction	3D DNR
Compression Standard
Video Compression	H.265/H.264/MJPEG
Video bit rate	256Kbps~16Mbps
Dual Stream	Yes
Triple Streams	Yes
Max. Image Resolution	1920 x 1080
Frame Rate	50Hz: 25fps (1920 × 1080, 1280 × 960, 1280×720)
Frame Rate	60Hz: 30fps (1920 × 1080, 1280 × 960, 1280×720)
Sub Stream	50Hz: 25fps (704 × 576, 640 × 480, 352 × 288, 320 × 240)
Sub Stream	60Hz: 30fps (704 × 480, 640 × 480, 352 × 240, 320 × 240)
Third Stream	50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 ×720, 704 × 576, 640 × 480, 352 × 288, 320 × 240)
Third Stream	60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 ×720, 704 × 480, 640 × 480, 352 × 240, 320 × 240)
Image Enhancement	BLC/HLC/3D DNR/Defog/EIS
Image Settings	Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
Target Cropping	support
3D DNR	support
Picture Overlay	LOGO picture can be overlaid on video with 128 × 128, 24 bit bmp format
Day/Night Switch	Day/Night/Auto/Scheduled
Network
Network Storage	microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger	Motion detection, tampering alarm, HDD full, HDD error, network disconnected, IP address conflicted, illegal login
Protocols	TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP,
Protocols	SNMP, IGMP, 802.1X, QoS, IPv6
General Function	One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy
General Function	mask, Watermark, IP address filtering
Interface
Communication Interface	-IO: 1 RJ45 10M/100M Ethernet port
Communication Interface	-I: M12 aviation plug
On-board storage	Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
General
Operation Condition	-40 °C to +65 °C (-40 °F to +149°F), Humidity 95% or less (non-condensing)
Power Supply	12 VDC ± 10%, PoE (802.3af)
Power Consumption	Max. 8W
Impact Protection	IK10
Weather Proof	IP68
IR Range	Approx 20 to 30 meters(65.6-98.4ft)
Dimensions	155.17 × 110.9 × 60.8 mm (6.1″ × 4.4″ × 2.4″)
Weight	960g (2.1lbs)
