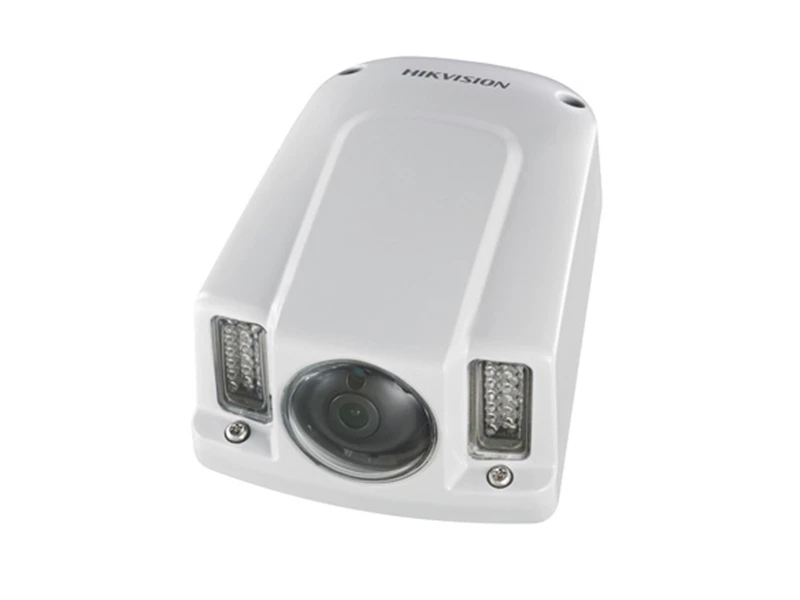

Hikvision DS 2CD6512 IO Mobil IP Kamera
Özellikler
- Up to 1.3 megapixel high resolution
- 1280 × 960 @30fps video
- Three video streams
- 4mm/6mm/8mm/12mm fixed lens
- 120dB Wide Dynamic Range
- 3D Digital Noise Reduction
- 3-axis adjustment
- Up to 128 GB on-board storage
- DC12V & PoE (802.3af)
- 20 m to 30 m IR range
- Build-in Heater
- IP68 weather-proof protection
- IK10
- M12 aviation plug (optional)
- Multiple smart events supported
Teknik Özellikler
Camera | |
Image Sensor | 1/2.7” Progressive Scan CMOS |
Min. Illumination | 0.01Lux @ (F1.2, AGC ON), 0 Lux with IR |
Shutter time | 1/3 s to 1/100,000 s, support auto electronic shutter |
Slow shutter | support |
Lens | 4 mm, horizontal field of view 90° [6 mm (53.9°), 8 mm (37.9°), 12 mm (24.3°), optional] |
Lens Mount | M12 |
Day& Night | IR cut filter with auto switch |
Wide Dynamic Range | 120 dB |
Digital noise reduction | 3D DNR |
Compression Standard | |
Video Compression | H.265/H.264/MJPEG |
Video bit rate | 256Kbps~16Mbps |
Dual Stream | Yes |
Triple Streams | Yes |
Image | |
Max. Image Resolution | 1280x960 |
Frame Rate | 50Hz: 25fps (1280 × 960, 1280 ×720) |
60Hz: 30fps (1280 × 960, 1280 ×720) | |
Sub Stream | 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288, 320 × 240) |
60Hz: 30fps (704 × 480, 640 × 480, 352 × 240, 320 × 240) | |
Third Stream | 50Hz: 25fps (1280 × 960, 1280 ×720, 704 × 576, 640 × 480, 352 × 288, 320 × 240) |
60Hz: 30fps (1280 × 960, 1280 ×720, 704 × 480, 640 × 480, 352 × 240, 320 × 240) | |
Image Enhancement | BLC/HLC/3D DNR/Defog/EIS |
Image Settings | Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser |
Target Cropping | support |
3D DNR | support |
Picture Overlay | LOGO picture can be overlaid on video with 128 × 128, 24 bit bmp format |
Day/Night Switch | Day/Night/Auto/Scheduled |
Network | |
Network Storage | microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR |
Alarm Trigger | Motion detection, tampering alarm, HDD full, HDD error, network disconnected, IP address conflicted, illegal login |
Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, |
SNMP, IGMP, 802.1X, QoS, IPv6 | |
General Function | One-key recovery, Anti-Flicker, three streams, heartbeat, mirror, password protection, video |
mask, Watermark, IP address filtering | |
Interface | |
Communication Interface | -IO: 1 RJ45 10M/100M Ethernet port |
-I: M12 aviation plug | |
On-board storage | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
General | |
Operation Condition | -40 °C to +65 °C (-40 °F to +149°F), Humidity 95% or less (non-condensing) |
Power Supply | 12 VDC ± 10%, PoE (802.3af) |
Power Consumption | Max. 8W |
Impact Protection | IK10 |
Weather Proof | IP68 |
IR Range | Approx 20 to 30 meters(65.6-98.4ft) |
Dimensions | 155.17 × 110.9 × 60.8 mm (6.1″ × 4.4″ × 2.4″) |
Weight | 960g (2.1lbs) |
Hikvision DS 2CD6512 IO Mobil IP Kamera Pdf Dosyası620.34 KB
Teknik Kısa
Depolama : Var
Ses : Var
Çözünürlük : 1.3MP
Irled : Var
