Açıklama

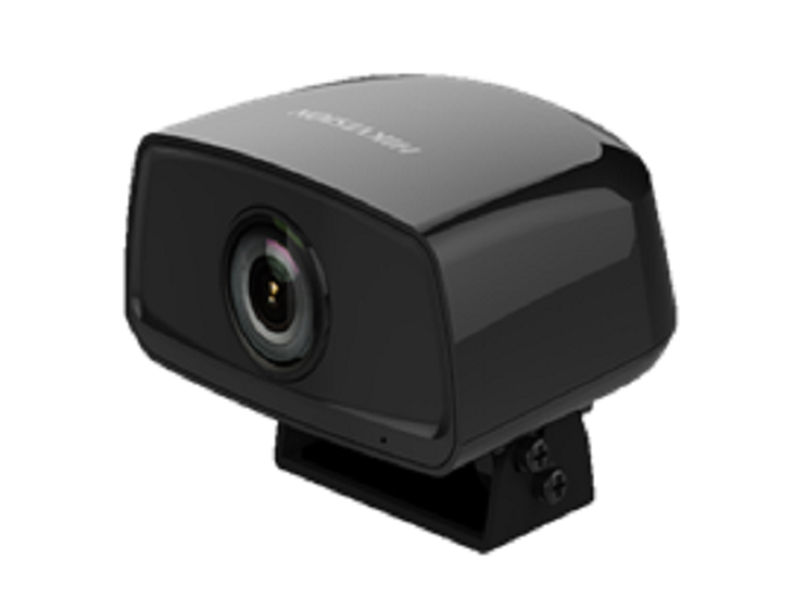

Hikvision DS 2XM6222FWD IM Mobil IP Kamera

Özellikler

1/2.7" Progressive Scan CMOS
2.8 mm, 4 mm, 6 mm, 8 mm, and 12 mm,optional
1920 × 1080 resolution
H.265, H.265+, H.264+, H.264
120dB WDR
IP67
IR range: 10 to 30 meters
Image enhancement: BLC, 3D DNR, HLC, defog, EIS
6 behavior analyses, 2 exception detections and face detection

Teknik Özellikler

Camera
Image Sensor	1/2.7” Progressive Scan CMOS
Min. Illumination	Color: 0.018 lux @(F1.2 AGC ON)
Min. Illumination	B/W: 0.006 lux @(F1.2 AGC ON), 0 lux with IR
Shutter time	1/3 s to 1/100,000 s
Slow shutter	Yes
Lens	2.8 mm, 4 mm, 6 mm, 8 mm, and 12 mm, optional
Lens Mount	M12
Adjustment Range	Pan: -20° to 20°, tilt: -15° to 20°
Day& Night	IR cut filter with auto switch
Wide Dynamic Range	120 dB
Digital noise reduction	3D DNR
Compression Standard
Video Compression	H.265/H.264/MJPEG
H.264 code profile	Baseline Profile/Main Profile/High Profile
Video bit rate	32Kbps~16Mbps
Triple Streams	Yes
Max. Image Resolution	1920 x 1080
Sub Stream	50Hz: 25fps (704 × 576, 352 × 288, 640 × 480, 320 × 240)
Sub Stream	60Hz: 30fps (704 × 480, 352 × 240, 640 × 480, 320 × 240)
Third Stream	50Hz: 25fps(1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 352 × 288, 640 × 480, 320 × 240)
Third Stream	60Hz: 30fps(1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 352 × 240, 640 × 480, 320 × 240)
Image Settings	Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
Target Cropping	Yes
BLC	Yes, zone configurable
HLC	Yes
Smart Defog	Yes
EIS	Yes
3D DNR	Yes
Picture Overlay	Logo picture cab be overlaid on video with 128 × 128 24bit bmp format, region optional
Day/Night Switch	Yes
Network
Network Storage	microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger	Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
General Function	One-key recovery, Anti-Flicker, three streams, heartbeat, mirror, password protection, video
General Function	mask, Watermark, IP address filtering
System Compatibility	ONVIF (Profile S, Profile G), ISAPI
Interface
Communication Interface	DS-2XM6222FWD-I: 1 RJ45 10M/100M self-adaptive Ethernet port
Communication Interface	DS-2XM6222FWD-IM: 1 M12 aviation plug
On-board storage	Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button	Yes
General
IR Range	10 to 30 meters
Operation Condition	-30 °C to +65 °C (-22 °F to +149 °F), Humidity 95% or less (non-condensing)
Power Supply	12 V DC ± 20%, PoE (802.3af, class 3)
Power Consumption	12 VDC, 0.43 A, max. 4W
Power Consumption	PoE (802.3af, 36V to 57V), 0.14 A to 0.09 A, max. 5.2 W
Weather Proof	IP67
Dimensions	78.8 × 81.6 × 64 mm (3.10" × 3.21" × 2.52")
Weight	Camera: Approx. 330 g (0.73 lb.)
