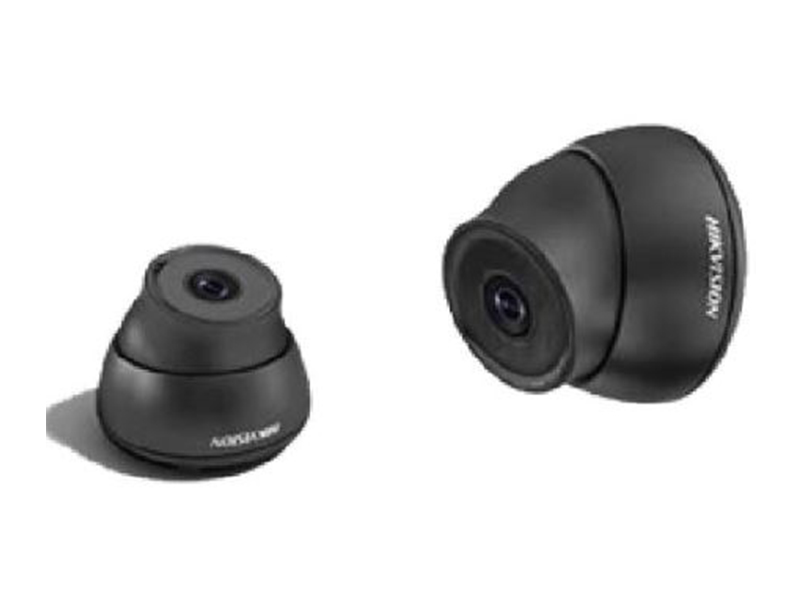

Hikvision DS 2XM6612(D)FWD I Mobil IP Turret Kamera
Özellikler
- Up to 1.3 megapixel high resolution
- Support Smart IR, Up to 3m IR range
- IR cut filter with auto switch
- Support on-board storage, up to 128GB
- Build-in microphone
- 120dB Wide Dynamic Range
- 3D Digital Noise Reduction
- Backlight Compensation
- Auto Electronic Shutter
Teknik Özellikler
| Camera | |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Min. Illumination | 0.01Lux @ (F1.2, AGC ON), 0 Lux with IR |
| 0.028Lux @ (F2.0, AGC ON), 0 Lux with IR | |
| Shutter time | 1/3 s to 1/100,000 s |
| Lens | 4mm, horizontal field of view: 73.1°; [2.0mm (115°); 2.8mm (92.5°); 6mm (46°); 8mm (35.52°); 12mm |
| (22°), optional] | |
| Lens Mount | M12 |
| Day& Night | IR cut filter with auto switch |
| Wide Dynamic Range | 120 dB |
| Digital noise reduction | 3D DNR |
| Compression Standard | |
| Video Compression | H.264/MJPEG |
| Video bit rate | 32Kbps~16Mbps |
| Audio Compression | G.711/G.722.1/G.726/MP2L2 |
| Audio bit rate | 64Kbps(G.711)/16Kbps(G.726)/32Kbps to 128Kbps(MP2L2)/32Kbps(G722.1) |
| Dual Stream | Yes |
| Image | |
| Max. Image Resolution | 1280x960 |
| Frame Rate | 50Hz: 25fps (1280 × 960, 1280 × 720) |
| 60Hz: 30fps (1280 × 960, 1280 ×720) | |
| Sub Stream | 50Hz: 25fps (352 × 288, 640 × 360) |
| 60Hz: 30fps (352 × 240, 640 × 360) | |
| Image Settings | Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser |
| 3D DNR | support |
| Day/Night Switch | IR cut filter with auto switch |
| Network | |
| Network Storage | Built-in Micro SD/SDHC/SDXC slot, up to 128G, NAS(NFS, SMB/CIFS) |
| Alarm Trigger | Motion detection, tampering alarm, HDD full, HDD error, network disconnected, IP address conflicted, illegal login |
| Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, |
| IGMP, QoS, IPv6, Bonjour | |
| General Function | Mirror, anti-flicker, heartbeat, watermark, password protection, privacy mask |
| Interface | |
| Audio | Internal Microphone and Speaker |
| Communication Interface | 1 RJ45 10M / 100M Ethernet interface |
| On-board storage | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
| General | |
| IR Range | Approx. 3 meters |
| Operation Condition | -30°C to 60 °C (-22 °F to 140 °F), Humidity 10% to 90% (non-condensing) |
| Power Supply | 12VDC ± 10% |
| Power Consumption | Max. 3.5W |
| Dimensions | 81.1 × 78.1 × 64 (3.2” × 3.1” × 2.52”) |
| Weight | 400g (0.88 lbs) |
Hikvision DS 2XM6612(D)FWD I Mobil IP Turret Kamera Pdf Dosyası641.86 KB
Teknik Kısa
Depolama : Var
Ses : Var
Çözünürlük : 1.3MP
Irled : Var
