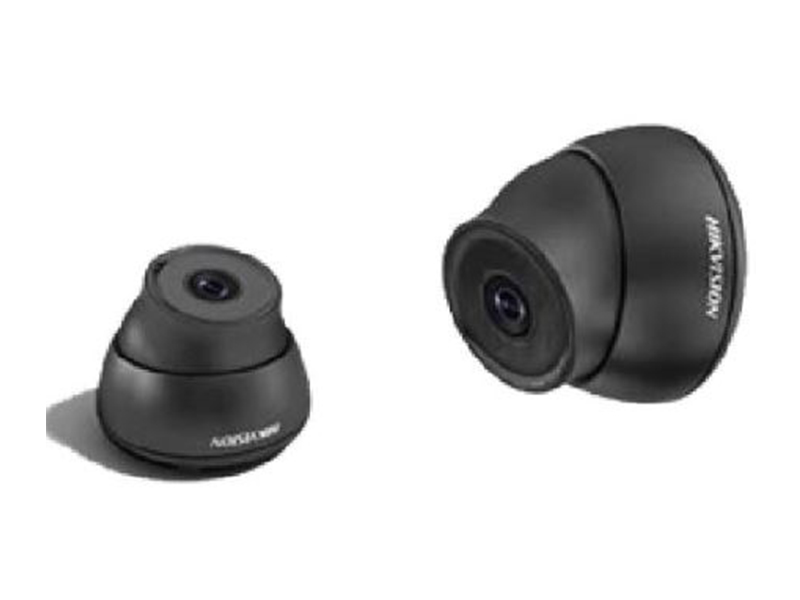

Hikvision DS 2XM6622(D)FWD I Mobil IP Kamera

Özellikler

Up to 2.0 megapixel high resolution
Support Smart IR, Up to 3m IR range
IR cut filter with auto switch
Support on-board storage, up to 128GB
Build-in microphone
120dB Wide Dynamic Range
3D Digital Noise Reduction
Backlight Compensation
Auto Electronic Shutter

Teknik Özellikler

Camera
Image Sensor	1/2.8” CMOS progressive scan CMOS
Min. Illumination	0.01Lux @ (F1.2, AGC ON), 0 Lux with IR
Min. Illumination	0.028Lux @ (F2.0, AGC ON), 0 Lux with IR
Shutter time	1/3 s to 1/100,000 s
Lens	4mm, horizontal field of view: 90°; [2.8mm (109.4°); 6mm (53.9°); 8mm (37.9°); 12mm (24.3°), optional]
Lens Mount	M12
Day& Night:	IR cut filter with auto switch
Wide Dynamic Range	120 dB
Digital noise reduction	3D DNR
Compression Standard
Video Compression	H.264/MJPEG
Video bit rate	32Kbps~16Mbps
Audio Compression	G.711/G.722.1/G.726/MP2L2
Audio bit rate	64Kbps(G.711)/16Kbps(G.726)/32Kbps to 128Kbps(MP2L2)/32Kbps(G722.1)
Dual Stream	Yes
Max. Image Resolution	1920 x 1080
Frame Rate	50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)
Frame Rate	60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 ×720)
Sub Stream	50Hz: 25fps (352 × 288, 640 × 360)
Sub Stream	60Hz: 30fps (352 × 240, 640 × 360)
Image Settings	Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser
3D DNR	support
Day/Night Switch	IR cut filter with auto switch
Network
Network Storage	Built-in Micro SD/SDHC/SDXC slot, up to 128G, NAS(NFS, SMB/CIFS)
Alarm Trigger	Motion detection, tampering alarm, HDD full, HDD error, network disconnected, IP address conflicted, illegal login
Protocols	TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP,
Protocols	IGMP, QoS, IPv6, Bonjour
General Function	Mirror, anti-flicker, heartbeat, watermark, password protection, privacy mask
Interface
Audio	Internal Microphone and Speaker
Communication Interface	1 RJ45 10M / 100M Ethernet interface
On-board storage	Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
General
IR Range	Approx. 3 meters
Operation Condition	-30°C to 60 °C (-22 °F to 140 °F), Humidity 10% to 90% (non-condensing)
Power Supply	12VDC ± 10%
Power Consumption	Max. 3.5W
Dimensions	81.1 × 78.1 × 64 (3.2” × 3.1” × 2.52”)
Weight	400g (0.88 lbs)
